RXZE2S114M | Zelio Socket RXZ, Separate Contact, 10A, < 250 V, Connector, for Relay RXM4 Pack of 10 | Square D

Brand: Square DSKU: RXZE2S114M
Square D | RXZE2S114M

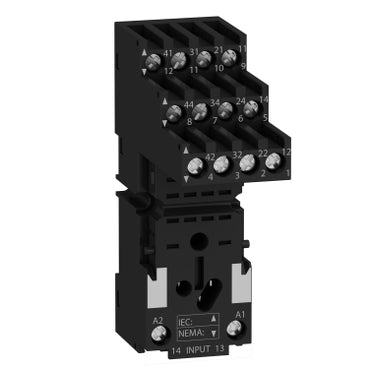

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RXZE2S114M
Jump to: Overview & Specifications Reviews

Overview Details for RXZE2S114M

Zelio Socket RXZ, Separate Contact, 10A, < 250 V, Connector, for Relay RXM4

Zelio Socket RXZ
  • Contact Terminal Arrangement: Separate Contact
  • Conventional Free Air Thermal Current: 10A
  • Rated Operational Voltage: <250 V
  • IP Degree of Protection: IP20 conforming to EN/IEC 60529
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product
Harmony Electromechanical Relays;Harmony Timer Relays
Product or Component Type
Socket
contact terminal arrangement
Separate
product compatibility
Plug-in relay RXM 4 C/O;Plug-in relay REXL 4 C/O
shape of pin
Flat
device short name
RXZ
sale per indivisible quantity
10
[Ith] conventional free air thermal current
10 A
[Ue] rated operational voltage
< 250 V
connections - terminals
Connector;1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end;Connector;2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end;Connector;1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Connector;2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
tightening torque
< 1 N.m M3
fixing mode
By screw panel);Clip-on 35 mm symmetrical DIN rail)
Marking
CE
Width
1.06 in (27 mm)
Net Weight
0.15 lb(US) (0.07 kg)
[Uimp] rated impulse withstand voltage
4 kV
overvoltage category
III
pollution degree
3
Standards
IEC 61984
Product Certifications
CSA;Lloyd's;UL
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient air temperature for operation
-40…131 °F (-40…55 °C)
IP degree of protection
IP20 conforming to EN/IEC 60529
dielectric strength
2500 V
Category
21128-ZELIO ICE CUBE RELAY ACCESSORIES
Discount Schedule
CP2
GTIN
3389119404280
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.05 in (2.679 cm)
Package 1 Width
1.14 in (2.893 cm)
Package 1 Length
3.24 in (8.219 cm)
Package 1 Weight
2.19 oz (62.2 g)
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
2.60 in (6.6 cm)
Package 2 Width
4.49 in (11.4 cm)
Package 2 Length
5.39 in (13.7 cm)
Package 2 Weight
23.44 oz (664.5 g)
Unit Type of Package 3
S03
Number of Units in Package 3
200
Package 3 Height
11.81 in (30 cm)
Package 3 Width
11.81 in (30 cm)
Package 3 Length
15.75 in (40 cm)
Package 3 Weight
29.10 lb(US) (13.2 kg)
Warranty
18 months
