RXZE2S111M | Socket RXZ - Separate Contact - 10 A - < 250 V - Connector - for Relay RXM3 Pack of 10 | Square D by Schneider Electric

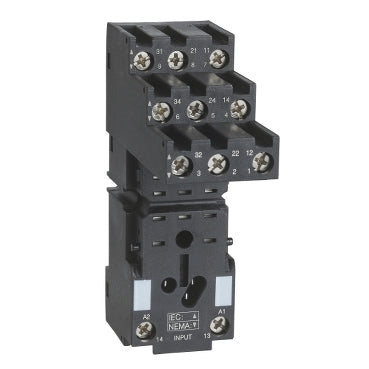

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RXZE2S111M

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D RXZE2S111M Documents

Datasheet

Overview

Details for RXZE2S111M

Socket RXZ - Separate Contact - 10 A - < 250 V - Connector - for Relay RXM3

"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Electromechanical Relays
Product or Component Type: Socket
contact terminal arrangement: Separate
product compatibility: Plug-in relay RXM 3 C/O
shape of pin: Flat
device short name: RXZ
sale per indivisible quantity: 10
[Ith] conventional free air thermal current: 10 A
[Ue] rated operational voltage: < 250 V
connections - terminals: Connector;1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end;Connector;2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end;Connector;1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Connector;2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
tightening torque: < 1 N.m M3
fixing mode: By screw panel);Clip-on 35 mm symmetrical DIN rail)
Marking: CE
Width: 1.06 in (27 mm)
Net Weight: 0.15 lb(US) (0.066 kg)
[Uimp] rated impulse withstand voltage: 4 kV
overvoltage category: III
pollution degree: 3
Standards: IEC 61984
Product Certifications: UL;Lloyd's;CSA
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Ambient air temperature for operation: -40…131 °F (-40…55 °C)
IP degree of protection: IP20 conforming to EN/IEC 60529
dielectric strength: 2500 V
Category: 21128-ZELIO ICE CUBE RELAY ACCESSORIES
Discount Schedule: CP2
GTIN: 3389119404273
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.06 in (2.7 cm)
Package 1 Width: 2.40 in (6.1 cm)
Package 1 Length: 3.23 in (8.2 cm)
Package 1 Weight: 2.15 oz (61 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 4.57 in (11.6 cm)
Package 2 Width: 2.68 in (6.8 cm)
Package 2 Length: 5.51 in (14 cm)
Package 2 Weight: 22.01 oz (624 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 200
Package 3 Height: 5.91 in (15 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 23.59 lb(US) (10.7 kg)
Warranty: 18 months
