RXM4GB2BD | MINIATURE RELAY LED 4C/O LOW SW 24VDC Pack of 10 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RXM4GB2BD
Documents and manuals
Square D RXM4GB2BD Documents
Overview
Details for RXM4GB2BD
MINIATURE RELAY LED 4C/O LOW SW 24VDC

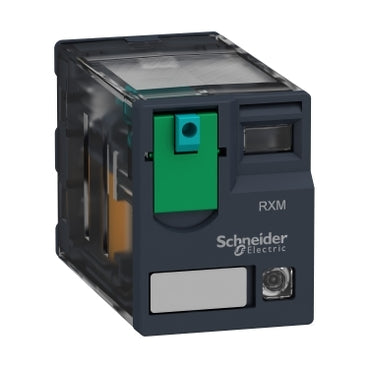

Miniature Plug-in relay - Zelio RXM 4 C/O 24 V DC 3 A with LED RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor control, PLC Interfaces, power supplies, building equipment, especially those requiring low level contacts. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.Specifications
- Range of Product
- Harmony Electromechanical Relays
- series name
- Miniature
- Product or Component Type
- Plug-in relay
- device short name
- RXM
- contacts type and composition
- 4 C/O
- [Uc] control circuit voltage
- 24 V DC
- [Ithe] conventional enclosed thermal current
- 3 A -40…131 °F (-40…55 °C)
- Status LED
- With
- Control Type
- Lockable test button
- utilisation coefficient
- 20 %
- shape of pin
- Flat
- [Ui] rated insulation voltage
- 250 V IEC;300 V CSA;300 V UL
- [Uimp] rated impulse withstand voltage
- 2.5 kV 1.2/50 µs
- contacts material
- Gold plated bifurcated silver
- [Ie] rated operational current
- 2 A 28 V DC) NO IEC;2 A 250 V AC) NO IEC;1 A 28 V DC) NC IEC;1 A 250 V AC) NC IEC;3 A 28 V DC) UL;3 A 277 V AC) UL
- maximum switching voltage
- 250 V IEC
- resistive rated load
- 3 A 250 V AC;3 A 28 V DC
- maximum switching capacity
- 750 VA/84 W
- minimum switching capacity
- 15 mW 3 mA;5 V
- operating rate
- <= 1200 cycles/hour under load;<= 18000 cycles/hour no-load
- mechanical durability
- 10000000 cycles
- electrical durability
- 100000 cycles resistive depending on mounting position and working environment
- average coil consumption
- 0.9 W
- drop-out voltage threshold
- >= 0.1 Uc
- operate time
- 20 ms
- release time
- 20 ms
- average coil resistance
- 650 Ohm 20 °C +/- 10 %
- rated operational voltage limits
- 19.2...26.4 V DC
- protection category
- RT I
- test levels
- Level A
- operating position
- Any position
- Net Weight
- 0.08 lb(US) (0.037 kg)
- device presentation
- Complete product
- dielectric strength
- 1300 V AC between contacts with micro disconnection;2000 V AC between coil and contact;2000 V AC between poles
- Product Certifications
- Lloyd's;CSA;CE;UL;GOST
- Standards
- EN/IEC 61810-1;CSA C22.2 No 14;UL 508
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- ambient air temperature for operation
- -40…131 °F (-40…55 °C)
- vibration resistance
- 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation;5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
- IP degree of protection
- IP40 conforming to EN/IEC 60529
- shock resistance
- 10 gnin operation;30 gnnot operating
- pollution degree
- 2
- Category
- 21127-ZELIO ICE CUBE RELAYS
- Discount Schedule
- CP2
- GTIN
- 3389119403986
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.79 in (2 cm)
- Package 1 Width
- 0.98 in (2.5 cm)
- Package 1 Length
- 1.77 in (4.5 cm)
- Package 1 Weight
- 1.27 oz (36 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 1.18 in (3 cm)
- Package 2 Width
- 3.94 in (10 cm)
- Package 2 Length
- 4.92 in (12.5 cm)
- Package 2 Weight
- 14.22 oz (403 g)
- Unit Type of Package 3
- S02
- Number of Units in Package 3
- 240
- Package 3 Height
- 5.91 in (15 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 21.92 lb(US) (9.943 kg)
- Warranty
- 18 months
