RXM4AB3BD | Miniature Plug-in Relay - Zelio RXM 4 C/O 24 V AC 6A with LED Pack of 10 | Square D by Schneider Electric

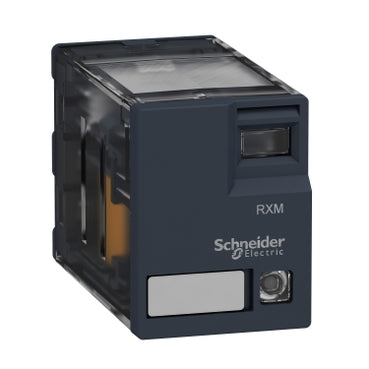

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RXM4AB3BD
Documents and manuals
Square D RXM4AB3BD Documents
Overview
Details for RXM4AB3BD
Miniature Plug-in Relay - Zelio RXM 4 C/O 24 V AC 6A with LED
Miniature Plug-in Relay - Zelio RXM- Contacts Type and Composition: 4 C/O
- Control Circuit Voltage: 24V AC 50/60Hz
- Conventional Enclosed Thermal Current: 6A
- LED
- Degree of Protection: IP40
Specifications
- Range of Product
- Harmony Electromechanical Relays
- series name
- Miniature
- Product or Component Type
- Plug-in relay
- device short name
- RXM
- contacts type and composition
- 4 C/O
- [Uc] control circuit voltage
- 24 V DC
- Status LED
- With
- Control Type
- Without lockable test button
- utilisation coefficient
- 20 %
- shape of pin
- Flat
- [Ui] rated insulation voltage
- 250 V IEC;300 V CSA;300 V UL
- [Uimp] rated impulse withstand voltage
- 2.5 kV 1.2/50 µs
- contacts material
- AgNi
- [Ie] rated operational current
- 3 A 28 V DC) NC IEC;3 A 250 V AC) NC IEC;6 A 28 V DC) NO IEC;6 A 250 V AC) NO IEC;6 A 277 V AC) UL;8 A 30 V DC) UL
- continuous output current
- 5 A
- maximum switching voltage
- 250 V IEC
- resistive rated load
- 6 A 250 V AC;6 A 28 V DC
- maximum switching capacity
- 1500 VA/168 W
- minimum switching capacity
- 170 mW 10 mA;17 V
- operating rate
- <= 1200 cycles/hour under load;<= 18000 cycles/hour no-load
- mechanical durability
- 10000000 cycles
- electrical durability
- 100000 cycles resistive
- average coil consumption
- 0.9 W
- drop-out voltage threshold
- >= 0.1 Uc
- operate time
- 20 ms
- release time
- 20 ms
- average coil resistance
- 650 Ohm 20 °C +/- 10 %
- rated operational voltage limits
- 19.2...26.4 V DC
- safety reliability data
- B10d = 100000
- protection category
- RT I
- test levels
- Level A
- operating position
- Any position
- Net Weight
- 0.08 lb(US) (0.037 kg)
- device presentation
- Complete product
- dielectric strength
- 1300 V AC between contacts with micro disconnection;2000 V AC between coil and contact with basic insulation;2000 V AC between poles with basic insulation
- Product Certifications
- GOST;Lloyd's;CE;CSA;UL
- Standards
- CSA C22.2 No 14;EN/IEC 61810-1;UL 508
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- ambient air temperature for operation
- -40…131 °F (-40…55 °C)
- vibration resistance
- 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation;5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
- IP degree of protection
- IP40 conforming to EN/IEC 60529
- shock resistance
- 10 gnin operation;30 gnnot operating
- pollution degree
- 2
- Category
- 21127-ZELIO ICE CUBE RELAYS
- Discount Schedule
- CP2
- GTIN
- 3389119217231
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.83 in (2.100 cm)
- Package 1 Width
- 1.06 in (2.700 cm)
- Package 1 Length
- 1.81 in (4.600 cm)
- Package 1 Weight
- 1.27 oz (36.000 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 1.18 in (3.000 cm)
- Package 2 Width
- 4.02 in (10.200 cm)
- Package 2 Length
- 5.00 in (12.700 cm)
- Package 2 Weight
- 13.58 oz (385.000 g)
- Unit Type of Package 3
- S02
- Number of Units in Package 3
- 240
- Package 3 Height
- 5.91 in (15.000 cm)
- Package 3 Width
- 11.81 in (30.000 cm)
- Package 3 Length
- 15.75 in (40.000 cm)
- Package 3 Weight
- 21.37 lb(US) (9.695 kg)
- Warranty
- 18 months
