RXM3AB2B7 | Miniature Plug-in Relay - Zelio RXM 3 C/O 24 V AC 10 A with LED Pack of 10 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RXM3AB2B7
Documents and manuals
Square D RXM3AB2B7 Documents
Overview
Details for RXM3AB2B7

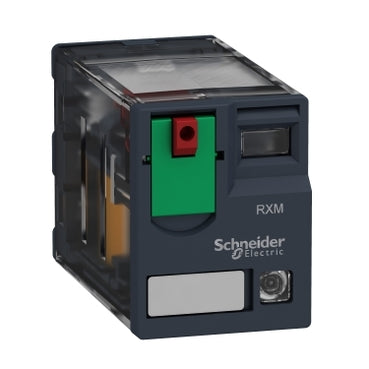

Miniature Plug-in Relay - Zelio RXM 3 C/O 24 V AC 10 A with LED
"This Harmony RXM miniature plug-in relay has a coil control voltage of 24V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0Specifications
- Range of Product
- Harmony Electromechanical Relays
- series name
- Miniature
- Product or Component Type
- Plug-in relay
- device short name
- RXM
- contacts type and composition
- 3 C/O
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- Status LED
- With
- Control Type
- Lockable test button
- utilisation coefficient
- 20 %
- shape of pin
- Flat
- [Ui] rated insulation voltage
- 250 V IEC;300 V CSA;300 V UL
- [Uimp] rated impulse withstand voltage
- 4 kV 1.2/50 µs
- contacts material
- AgNi
- [Ie] rated operational current
- 10 A 28 V DC) NO IEC;10 A 250 V AC) NO IEC;5 A 28 V DC) NC IEC;5 A 250 V AC) NC IEC;10 A 30 V DC) UL;10 A 277 V AC) UL
- continuous output current
- 6.7 A
- maximum switching voltage
- 250 V IEC
- resistive rated load
- 10 A 250 V AC;10 A 28 V DC
- maximum switching capacity
- 2500 VA/280 W
- minimum switching capacity
- 170 mW 10 mA;17 V
- operating rate
- <= 1200 cycles/hour under load;<= 18000 cycles/hour no-load
- mechanical durability
- 10000000 cycles
- electrical durability
- 100000 cycles resistive
- average coil consumption in VA
- 1.2 60 Hz
- average consumption
- 1.2 VA 60 Hz
- drop-out voltage threshold
- >= 0.15 Uc
- operate time
- 20 ms
- release time
- 20 ms
- average coil resistance
- 180 Ohm 20 °C +/- 15 %
- rated operational voltage limits
- 19.2...26.4 V AC
- safety reliability data
- B10d = 100000
- protection category
- RT I
- test levels
- Level A
- operating position
- Any position
- CAD overall height
- 3.11 in (79 mm)
- CAD overall depth
- 3.09 in (78.45 mm)
- Net Weight
- 0.08 lb(US) (0.037 kg)
- device presentation
- Complete product
- dielectric strength
- 1300 V AC between contacts with micro disconnection;2000 V AC between coil and contact;2000 V AC between poles
- Product Certifications
- GOST;UL;CE;CSA;Lloyd's
- Standards
- CSA C22.2 No 14;UL 508;EN/IEC 61810-1
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- ambient air temperature for operation
- -40…131 °F (-40…55 °C)
- vibration resistance
- 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation;5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
- IP degree of protection
- IP40 conforming to EN/IEC 60529
- shock resistance
- 10 gnin operation;30 gnnot operating
- pollution degree
- 2
- Category
- 21127-ZELIO ICE CUBE RELAYS
- Discount Schedule
- CP2
- GTIN
- 3389119403627
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.22 in (3.1 cm)
- Package 1 Width
- 4.06 in (10.3 cm)
- Package 1 Length
- 4.92 in (12.5 cm)
- Package 1 Weight
- 1.31 oz (37 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 1.22 in (3.1 cm)
- Package 2 Width
- 4.06 in (10.3 cm)
- Package 2 Length
- 4.92 in (12.5 cm)
- Package 2 Weight
- 14.25 oz (404 g)
- Unit Type of Package 3
- S02
- Number of Units in Package 3
- 240
- Package 3 Height
- 5.91 in (15 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 22.46 lb(US) (10.187 kg)
- Warranty
- 18 months
