RXG12F7 | Zelio RXG Interface Plug-in Relay, 1 C/O, 10A, 250V AC 30V DC, IP40 Pack of 10 | Square D by Schneider Electric

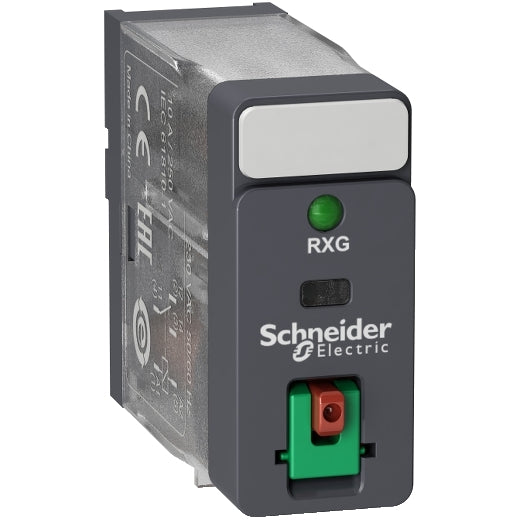

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RXG12F7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D RXG12F7 Documents

Datasheet

Overview

Details for RXG12F7

Zelio RXG Interface Plug-in Relay, 1 C/O, 10A, 250V AC 30V DC, IP40

"This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."

Specifications

Range of product: Harmony Electromechanical Relays
Series name: Interface relay
Product or component type: Plug-in relay
device short name: RXG
contacts type and composition: 1 C/O
Status LED: With
contacts material: Silver alloy (AgSnO2In2O3)
Maximum contact resistance: 100 mOhm
[Ithe] conventional enclosed thermal current: 10 A at -40…55 °C
[Ie] rated operational current: 10 A at 30 V (DC) conforming to UL
10 A at 30 V (DC) conforming to IEC
10 A at 250 V (AC) conforming to IEC
10 A at 250 V (AC) conforming to UL
Maximum switching voltage: 250 V AC
30 V DC
Load current: 10 A at 250 V AC
Maximum switching capacity: 2500 VA
Minimum switching capacity: 500 mW at 100 mA, 5 V DC
Operating rate: <= 1800 cycles/hour under load
<= 18000 cycles/hour no-load
Utilisation coefficient: 20 %
Mechanical durability: 10000000 cycles
Electrical durability: 100000 cycles for NO resistive load at 55 °C
100000 cycles for NC resistive load at 55 °C
[Ui] rated insulation voltage: 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage: 6 kV 1.2/50 µs
Dielectric strength: 1000 V AC between contacts with micro disconnection
5000 V AC between coil and contact with reinforced insulation
Coil resistance: 6300 Ohm +/- 10 %
Insulation resistance: 1000 MOhm at 500 V DC
Test levels: Level A group mounting
Mounting position: Any position
Average consumption in VA: 0.82 VA 60 Hz
Drop-out voltage threshold: >= 0.3 Uc AC
Control circuit voltage limits: 0.8...1.1 Uc AC
Coil insulation class: Class F
Operate time: 20 ms
Release time: 20 ms
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Safety reliability data: B10d = 100000
colour of cover: Standard
control type: Lockable test button
Local signalling: Flag
Torque value: 0.8 N.m
Net weight: 0.02 kg
device presentation: Complete product
Vibration resistance: 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation
5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation
IP degree of protection: IP40
Shock resistance: 20 gn in operation
100 gn not in operation
Protection category: RT I
Standards: UL 508
IEC 61810-1
CSA C22.2 No 14
product certifications: UL
EAC
CSA
CE
DNV-GL
Pollution degree: 2
Overvoltage category: III
Ambient air temperature for storage: -40…85 °C
Ambient air temperature for operation: -40…70 °C
Relative humidity: 10…85 %
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.45 cm
Package 1 Width: 9.25 cm
Package 1 Length: 8.6 cm
Package 1 Weight: 223 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 3.5 cm
Package 2 Width: 8.2 cm
Package 2 Length: 9.1 cm
Package 2 Weight: 230 g
Unit Type of Package 3: S01
Number of Units in Package 3: 200
Package 3 Height: 15 cm
Package 3 Width: 15 cm
Package 3 Length: 40 cm
Package 3 Weight: 4.83 kg
Warranty: 18 months
