QOB370 | Miniature circuit-breaker, QO, 70 A, 3P, 120/240 V, 10 kA, Bolt on | Square D by Schneider Electric

Brand: Square DSKU: QOB370

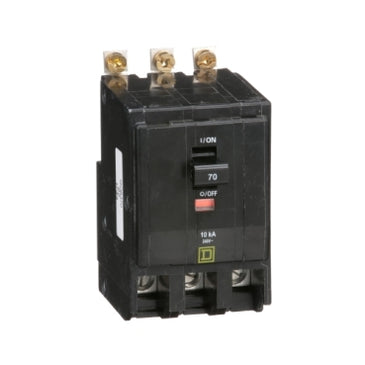

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOB370

Overview & Specifications Reviews Parts & Accessories

Overview Details for QOB370

Miniature circuit-breaker, QO, 70 A, 3P, 120/240 V, 10 kA, Bolt on

Miniature circuit-breaker

Current Rating : 70 A
Voltage Rating : 120/240 V AC, 240 V AC, 120 V AC
Mounting Type : Bolt-on
Number of Poles : 3P
Ratings : HACR rated

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 70 A
Voltage Rating: 120/240 V AC;240 V AC;120 V AC
Mounting Type: Bolt-on
Number of Poles: 3P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Box lugs
Interrupt Rating: 10 kA 120/240 V AC 50/60 Hz;10 kA 240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz
Number of Panel Spaces: 3
Wire Size: AWG 8...AWG 2 copper or aluminium
Tightening Torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
Height: 3.11 in (79 mm)
Width: 2.24 in (57 mm)
Depth: 2.91 in (74 mm)
Net Weight: 0.96 lb(US) (0.435 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00015-QOB CIRCUIT BREAKERS
Discount Schedule: DE2
GTIN: 785901019749
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.33 in (0.838 cm)
Package 1 Width: 0.25 in (0.635 cm)
Package 1 Length: 0.39 in (0.991 cm)
Package 1 Weight: 0.96 lb(US) (0.435 kg)
Warranty: 18 months
