QOB140VH | Mini circuit breaker, QO, 40A, 1 pole, 120/240 VAC, 22 kA, bolt on mount | Square D by Schneider Electric

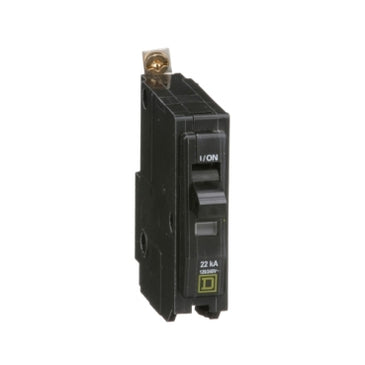

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QOB140VH
Documents and manuals
Square D QOB140VH Documents
Overview
Details for QOB140VH
Mini circuit breaker, QO, 40A, 1 pole, 120/240 VAC, 22 kA, bolt on mount
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. The box lugs will accept one 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.12 inches, a width of 0.75 inch and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 40 A
- Voltage Rating
- 120/240 V AC;120 V AC
- Mounting Type
- Bolt-on
- Number of Poles
- 1P
- Circuit Breaker Type
- Standard
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Interrupt Rating
- 22 kA 120/240 V AC 50/60 Hz;22 kA 120 V AC 50/60 Hz
- Number of Panel Spaces
- 1
- Wire Size
- AWG 8...AWG 2 copper or aluminium
- Tightening Torque
- 40.71 lbf.in (4.6 N.m)
- Height
- 3.11 in (79 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.31 lb(US) (0.141 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00015-QOB CIRCUIT BREAKERS
- Discount Schedule
- DE2
- GTIN
- 785901088578
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.80 in (2.032 cm)
- Package 1 Width
- 3.50 in (8.89 cm)
- Package 1 Length
- 3.50 in (8.89 cm)
- Package 1 Weight
- 4.96 oz (140.614 g)
- Warranty
- 18 months
