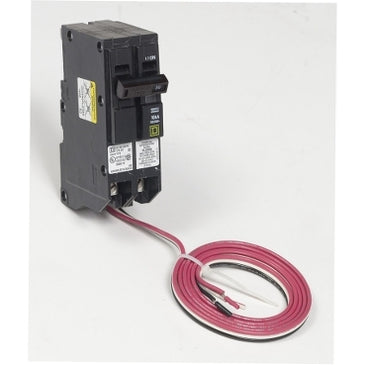

QO230PL5392 | Mini circuit breaker, QO, 30A, 2 pole, 120/240 VAC, 10 kA, Powerlink, plug in mount, 48 in leads | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO230PL5392
Documents and manuals
Square D QO230PL5392 Documents
Overview
Details for QO230PL5392
Mini circuit breaker, QO, 30A, 2 pole, 120/240 VAC, 10 kA, Powerlink, plug in mount, 48 in leads
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a Powerlink feature and 48in leads. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555Specifications
- Product
- Circuit breaker
- Range
- QO
- Current Rating
- 30 A
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 2P
- Circuit Breaker Type
- Standard
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz
- Number of Panel Spaces
- 2
- Provided Equipment
- 48 in (1219.20 mm) lead
- Wire Size
- AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper
- Tightening Torque
- 40.71 lbf.in (4.6 N.m)
- Height
- 4.57 in (116 mm)
- Width
- 1.50 in (38 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.91 lb(US) (0.413 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 09650-POWERLINK QO(B)PL BREAKERS
- Discount Schedule
- DE8A
- GTIN
- 785901741954
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.40 in (6.096 cm)
- Package 1 Width
- 3.50 in (8.89 cm)
- Package 1 Length
- 5.30 in (13.462 cm)
- Package 1 Weight
- 14.56 oz (412.769 g)
- Warranty
- 18 months
