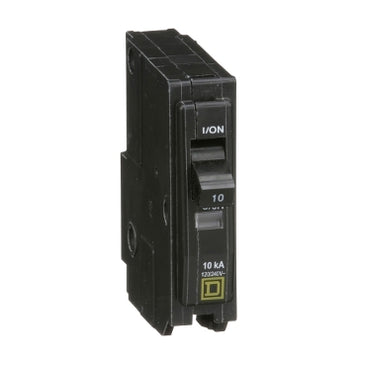

QO110 | QO Miniature circuit-breaker, 10 A, 1 pole, 120/240 V, 10 kA, plug in | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO110
Documents and manuals
Square D QO110 Documents
Overview
Details for QO110
QO Miniature circuit-breaker, 10 A, 1 pole, 120/240 V, 10 kA, plug in
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 10A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 10 A
- Voltage Rating
- 120/240 V AC;120 V AC;48 V DC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Circuit Breaker Type
- Standard
- Ratings
- HACR rated
- Electrical Connection
- Pressure plate
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz;5 kA 48 V DC
- Number of Panel Spaces
- 1
- Wire Size
- AWG 14...AWG 8 copper or aluminium
- Tightening Torque
- 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
- Height
- 2.99 in (76 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.26 lb(US) (0.118 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00004-QO;QOT 10-30A 1P;10-60A 2P
- Discount Schedule
- DE2A
- GTIN
- 785901205593
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.00 in (7.62 cm)
- Package 1 Width
- 0.80 in (2.032 cm)
- Package 1 Length
- 3.30 in (8.382 cm)
- Package 1 Weight
- 4.16 oz (117.934 g)
- Warranty
- 18 months
