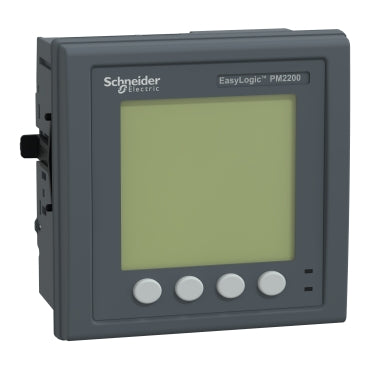

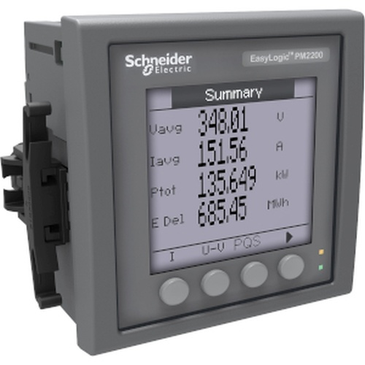

EasyLogic PM2220, Power & Energy meter, up to 15th H, LCD, RS485, class 1
This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 15th Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).Specifications
- range
- EasyLogic
- product name
- EasyLogic PM2200
- device short name
- PM2220
- Product or Component Type
- Power meter
- Device Application
- Power monitoring;Sub billing
- power quality analysis
- total harmonic distortion;up to the 15th harmonic
- type of measurement
- Apparent power min/max;total;Active and reactive power min/max;total;Current min/max;avg;Voltage min/max;avg;Frequency min/max;avg;Total current harmonic distortion THD (I) per phase;Total voltage harmonic distortion THD (U) per phase;Power factor min/max;avg;Apparent energy total;Active and reactive energy total
- metering type
- Active;reactive;apparent energy (signed;four quadrant);Current I;I1;I2;I3;Peak demand currents;Peak demand power PM;QM;SM;Unbalance current;Active power P;P1;P2;P3;Reactive power Q;Q1;Q2;Q3;Demand power P;Q;S;Voltage U;U21;U32;U13;V;V1;V2;V3;Apparent power S;S1;S2;S3;Calculated neutral current
- accuracy class
- Class 1 active energy IEC 62053-21;Class 1 reactive energy IEC 62053-24;Class 5 harmonic distorsion (I THD & U THD)
- measurement accuracy
- Apparent power +/- 1 %;Active energy +/- 1 %;Reactive energy +/- 1 %;Active power +/- 1 %;Voltage +/- 0.5 %;Power factor +/- 0.01;Current +/- 0.5 %;Frequency +/- 0.05 %
- measurement current
- 5…6000 mA
- measurement voltage
- 35…480 V AC 50/60 Hz between phases;20…277 V AC 50/60 Hz between phase and neutral;480…999000 V AC 50/60 Hz with external VT
- frequency measurement range
- 45…65 Hz
- [Us] rated supply voltage
- 44...277 V AC 45...65 Hz +/- 10 %;44...277 V DC +/- 10 %
- Network Frequency
- 50 Hz;60 Hz
- ride-through time
- 100 ms 120 V AC typical;400 ms 230 V AC typical;50 ms 125 V DC typical
- Line Rated Current
- 1 A;5 A
- maximum power consumption in VA
- 6 VA 277 V AC
- maximum power consumption in W
- 3.3 W power lines (AC));2 W 277 V power lines (DC))
- input impedance
- current <= 0.3 mOhm);voltage > 5 MOhm)
- tamperproof of settings
- Protected by access code
- Display Type
- Backlit LCD
- display colour
- Monochrome
- Display Resolution
- 128 x 128 pixels
- Demand intervals
- Configurable from 1 to 60 min
- information displayed
- Demand current past value);Demand current present value);Demand power past value);Demand power present value);Voltage;Current;Frequency;Energy consumption;Harmonic distortion;Power factor;Active power;Apparent power;Reactive power;Unbalanced in %;Harmonic amplitude
- control type
- 4 x button
- local signalling
- Red LED output signal 1...9999000 pulse/ k-h (kWh;kVAh;kVARh);Green LED module operation and integrated communication
- number of inputs
- 0
- Number of Outputs
- 0
- communication port protocol
- Modbus RTU 4800 bps;9600 bps;19200 bps;38.4 Kbps even/odd or none - 2 wires 2500 V
- communication port support
- Screw terminal block RS485
- data recording
- Time stamping;Min/max for 8 parameters
- Function Available
- Real time clock
- sampling rate
- 64 samples/cycle
- cybersecurity
- Enable/disable communication ports
- Communication Service
- Remote monitoring
- language
- Spanish;French;English;Russian;Portuguese;German;Chinese
- product certifications
- CE IEC 61010-1;CULus UL 61010-1;CULus CSA C22.2 No 61010-1;RCM;EAC;C-tick
- Mounting Mode
- Clip-on
- mounting position
- Vertical
- mounting support
- Framework
- provided equipment
- 1 x Installation guide
- measurement category
- Category III 480 V;Category II 480…600 V
- Electrical Insulation Class
- Double insulation;Class II
- flame retardance
- V-0 conforming to UL 94
- connections - terminals
- Current transformer screw connection bottom) 6;Voltage inputs screw connection top) 4
- Material
- Polycarbonate
- Width
- 3.78 in (96 mm)
- depth
- Total 3.00 in (76.09 mm);Embedded 2.43 in (61.64 mm)
- Height
- 3.78 in (96 mm)
- Net Weight
- 10.58 oz (300 g)
- compatibility code
- PM2220
- Service Life
- 7 year(s)
- IP degree of protection
- Front IP54 IEC 60529;Body IP30 IEC 60529
- relative humidity
- 5…95 % 122 °F (50 °C)
- pollution degree
- 2
- ambient air temperature for operation
- 14…140 °F (-10…60 °C)
- Ambient Air Temperature for Storage
- -13…158 °F (-25…70 °C)
- Operating altitude
- <= 6561.68 ft (2000 m)
- electromagnetic compatibility
- Electrostatic discharge IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test IEC 61000-4-3;Electrical fast transient/burst immunity test IEC 61000-4-4;Surge immunity test IEC 61000-4-5;Conducted RF disturbances IEC 61000-4-6;Magnetic field at power frequency IEC 61000-4-8;Voltage dips and interruptions immunity test IEC 61000-4-11;Emission tests FCC Part 15 class A
- overvoltage category
- III
- Category
- 09734-EASYLOGIC METERS AND ACCESSORIES
- Discount Schedule
- PL1
- GTIN
- 3606480800177
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.50 in (8.9 cm)
- Package 1 Width
- 4.80 in (12.2 cm)
- Package 1 Length
- 4.61 in (11.7 cm)
- Package 1 Weight
- 9.52 oz (270 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 1
- Package 2 Height
- 4.53 in (11.5 cm)
- Package 2 Width
- 3.43 in (8.7 cm)
- Package 2 Length
- 4.72 in (12 cm)
- Package 2 Weight
- 12.80 oz (363 g)
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 18
- Package 3 Height
- 11.81 in (30 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 15.48 lb(US) (7.02 kg)
