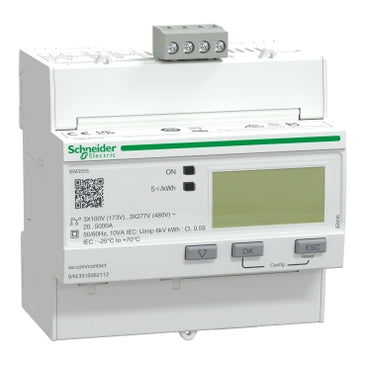

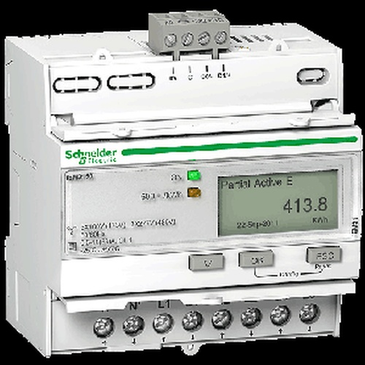

A9MEM3555 | iEM3555 Energy Meter - Modbus - 1 DI - 1 DO - Multi-Tariff - Rogowski Coil | Square D by Schneider Electric

Brand: Square DSKU: A9MEM3555

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A9MEM3555

Jump to: Overview & Specifications Reviews

Overview Details for A9MEM3555

iEM3555 Energy Meter - Modbus - 1 DI - 1 DO - Multi-Tariff - Rogowski Coil

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a Rogowski coil to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm). Compatible with power management software to take advantage of the IoT digital power installation.

Specifications

range: Acti 9
range of product: Acti 9 iEM3000
device short name: iEM3555
Product or Component Type: Energy meter
poles description: 3P;3P + N;1P + N
type of measurement: Active and reactive energy;Active and reactive power;Current;Voltage
metering type: Active;reactive;apparent energy (signed;four quadrant)
Device Application: Multi-tariff;Partial meter;Sub billing
accuracy class: Class 0.5S active energy IEC 62053-22;Class 0.5S active energy ANSI C12.20
input type: Rogowski coil 50...5000 A
rated voltage: 100…277 V +/- 20 %;173…480 V +/- 20 %
Network Frequency: 50 Hz;60 Hz
Technology Type: Electronic
Display Type: LCD display
sampling rate: 32 samples/cycle
measurement current: 50…5000 A
maximum value measured: 99999999.9 kWh;99999999 MWh
tariff input: Tariff 4)
communication port protocol: Modbus RTU 9.6;19.2 and 38.4 kbauds even/odd or none
communication port support: Screw terminal block RS485
local signalling: Green indicator light power ON;Yellow flashing LED accuracy checking;alarm overload;Yellow indicator light communications are active on the Modbus port (Modbus)
number of inputs: 1 digital 0...5 V/11...40 V 24 V DC
Number of Outputs: 1 digital (static)
output voltage: 5...40 V DC@50 mA
Mounting Mode: Clip-on
Mounting Support: DIN rail
connections - terminals: Current circuit screw terminals 0.01 in² (6 mm²);Voltage circuit screw terminals 0.00 in² (2.5 mm²);Input/output circuit screw terminals 0.00 in² (1.5 mm²);Communication screw terminals 0.00 in² (2.5 mm²)
tightening torque: Input/output circuit 4.43 lbf.in (0.5 N.m) Philips;Voltage circuit 4.43 lbf.in (0.5 N.m) Philips;Current circuit 7.08 lbf.in (0.8 N.m) pozidriv;Communication 4.43 lbf.in (0.5 N.m) Philips
wire stripping length: Input/output circuit 0.24 in (6 mm);Voltage circuit 0.31 in (8 mm);Current circuit 0.31 in (8 mm);Communication 0.28 in (7 mm)
Standards: BS EN 61326-1;IEC 61326-1;EN 61326-1;BS EN 61010-1;EN 61010-1;IEC 61010-1;UL 61010-1;BS EN 61010-2-30;IEC 61010-2-30;EN 61010-2-30;UL 61010-2-30;ANSI C12.20
product certifications: CE IEC 61010-1 safety);CE EN 61557-12 power monitor);CE EN/IEC 61326-1 EMC);UKCA BS EN 61010-1 safety);UKCA BS EN 61557-12 power monitor);UKCA BS EN 61326-1 EMC);CULus UL 61010-1 safety);CULus EN 61010-1 safety);KZ;RCM
IP degree of protection: Front panel IP40 IEC 60529;Body IP20 IEC 60529
IK degree of protection: IK08
pollution degree: 2
relative humidity: 5…95 % 97 °F (36 °C)
ambient air temperature for operation: -13…158 °F (-25…70 °C) - IEC
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Operating altitude: < 9842.52 ft (3000 m)
Color: White
9 mm pitches: 10
Width: 3.54 in (90 mm)
Height: 3.43 in (87 mm)
Depth: 2.72 in (69 mm)
Category: 09786-SE ENTRY POWER METER
Discount Schedule: PL1
GTIN: 3606480845246
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.50 in (8.89 cm)
Package 1 Width: 4.50 in (11.43 cm)
Package 1 Length: 4.10 in (10.41 cm)
Package 1 Weight: 0.75 lb(US) (0.34 kg)
Unit Type of Package 2: S03
Number of Units in Package 2: 30
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 23.56 lb(US) (10.687 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 240
Package 3 Height: 31.50 in (80 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 221.26 lb(US) (100.364 kg)
