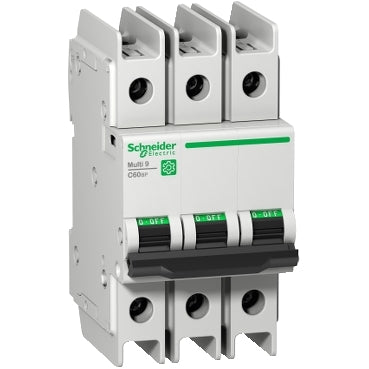

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M9F42303
Documents and manuals
Square D M9F42303 Documents
Overview
Details for M9F42303
Multi 9 - C60BP - Miniature circuit-breaker, 3P, 3 A, C Curve, 480Y/277 V, 10 kA , UL 489
Multi9 C60BP 3P C 3A 10kA 480Y/277V UL48
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 3A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.Specifications
- range
- Multi 9
- product name
- Multi 9 C60
- Product or Component Type
- Miniature circuit-breaker
- device short name
- C60BP
- Device Application
- Distribution
- poles description
- 3P
- number of protected poles
- 3
- Line Rated Current
- 3 A 77 °F (25 °C) EN/IEC 60947-2
- network type
- AC
- trip unit technology
- Thermal-magnetic
- curve code
- C
- breaking capacity
- 6 kA Icu 440 V AC EN/IEC 60947-2;10 kA Icu 415 V AC EN/IEC 60947-2;20 kA Icu 240 V AC EN/IEC 60947-2;6 kA Icu 440 V AC GB 14048.2;10 kA Icu 415 V AC GB 14048.2;20 kA Icu 240 V AC GB 14048.2;14 kA AIR 240 V AC UL 489;10 kA AIR 480Y/277 V AC UL 489;14 kA AIR 240 V AC CSA C22.2 No 5;10 kA AIR 480Y/277 V AC CSA C22.2 No 5
- suitability for isolation
- Yes EN/IEC 60947-2
- Standards
- EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5
- product certifications
- IEC;CCC;CSA;UL
- [Ue] rated operational voltage
- 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz
- magnetic tripping limit
- 8.5 x In +/- 20 % AC
- [Ics] rated service breaking capacity
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC;7.5 kA 75 % EN/IEC 60947-2 - 415 V AC;15 kA 75 % EN/IEC 60947-2 - 240 V AC;4.5 kA 75 % GB 14048.2 - 440 V AC;7.5 kA 75 % GB 14048.2 - 415 V AC;15 kA 75 % GB 14048.2 - 240 V AC
- [Ui] rated insulation voltage
- 500 V AC EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kVEN/IEC 60947-2
- contact position indicator
- Yes
- Control Type
- Toggle
- local signalling
- ON/OFF indication
- Mounting Mode
- Clip-on
- Mounting Support
- DIN rail
- 9 mm pitches
- 6
- Height
- 4.06 in (103 mm)
- Width
- 2.13 in (54 mm)
- Depth
- 2.83 in (72 mm)
- color
- Gray
- mechanical durability
- 20000 cycles
- electrical durability
- 10000 cycles
- provision for padlocking
- Padlockable
- connections - terminals
- Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible
- wire stripping length
- 0.55 in (14 mm) top or bottom
- tightening torque
- 22.13 lbf.in (2.5 N.m) top or bottom
- earth-leakage protection
- Without
- IP degree of protection
- IP20 conforming to IEC 60529;IP40 (modular enclosure) conforming to IEC 60529
- pollution degree
- 3 EN/IEC 60947-2
- tropicalisation
- 2 IEC 60068-1
- relative humidity
- 95 % 131 °F (55 °C)
- Operating altitude
- 0...6561.68 ft (0...2000 m)
- ambient air temperature for operation
- -22…158 °F (-30…70 °C)
- Ambient Air Temperature for Storage
- -40…176 °F (-40…80 °C)
- Category
- 00949-M9 GEN 2 CB UL489
- Discount Schedule
- DE2
- GTIN
- 3606481170002
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.13 in (5.4 cm)
- Package 1 Width
- 2.95 in (7.5 cm)
- Package 1 Length
- 4.06 in (10.3 cm)
- Package 1 Weight
- 12.98 oz (368 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 4
- Package 2 Height
- 3.27 in (8.3 cm)
- Package 2 Width
- 4.25 in (10.8 cm)
- Package 2 Length
- 8.66 in (22 cm)
- Package 2 Weight
- 3.38 lb(US) (1.535 kg)
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 36
- Package 3 Height
- 11.81 in (30 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 31.53 lb(US) (14.302 kg)
