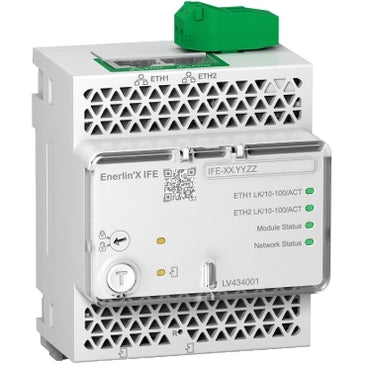

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LV434001

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D LV434001 Documents

Datasheet

Overview

Details for LV434001

Ethernet Interface For One Circuit Break

Enerlin'X IFE, Ethernet interface for circuit breakers This IFE is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to a single Masterpact, Compact or PowerPact circuit breaker. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE interface is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE interface is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE interface firmware can be updated using EcoStruxure Power Commission software.

Specifications

device short name: IFE
Product or Component Type: Interface module
range compatibility: Masterpact (MasterPact MTZ);Masterpact (MasterPact NT);Masterpact (MasterPact NW);ComPact (ComPact NSX);ComPact (ComPact NS630b...1600);ComPact (ComPact NS1600b...3200);PowerPact (PowerPact J);PowerPact (PowerPact L);PowerPact (PowerPact H);PowerPact (PowerPact P);PowerPact (PowerPact R)
communication network type: Ethernet;Modbus TCP/IP;HTTP;FTP;SMTP;NTP;SNMP 10/100 Mbit/s 2-port RJ45;Universal Logic Plug 2-port RJ45
web server: Embedded HTTP server
Mounting Mode: By clips
Mounting Support: 35 mm DIN rail
Control Type: By software
[Us] rated supply voltage: 24 V DC - 20...10 %
maximum supply current: 3 A
current consumption: 120 mA
Connections - Terminals: RJ45 connector
Product Certifications: GOST;cULus;FCC;CE
Standards: UL 60950;UL 508;IEC 60947-6-2;IEC 60950
Height: 4.13 in (105 mm)
Width: 2.83 in (72 mm)
Depth: 2.80 in (71 mm)
Net Weight: 6.44 oz (182.5 g)
accessory / separate part category: Spare part Compact NS630b...1600;Spare part Compact NS1600b...3200
IP Degree of Protection: Connectors IP2x;Other parts IP3x;Front panel IP4X
relative humidity: 5…85 %
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Ambient air temperature for operation: -4…158 °F (-20…70 °C)
pollution degree: 3
flame retardance: V0 conforming to UL 94;V0 conforming to IEC 60947-1;V0 conforming to IEC 60695-2-11
shock resistance: 1000 m/s²
vibration frequency: 5…8.4 Hz
Category: 01103-H;J;COMPACT NS UL/IEC CIRCUIT BREAKER ACCESSORIES
Discount Schedule: DE2
GTIN: 3606481283139
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.80 in (7.1 cm)
Package 1 Width: 2.83 in (7.2 cm)
Package 1 Length: 4.13 in (10.5 cm)
Package 1 Weight: 6.63 oz (188.0 g)
Unit Type of Package 2: P06
Number of Units in Package 2: 192
Package 2 Height: 23.62 in (60.0 cm)
Package 2 Width: 31.50 in (80.0 cm)
Package 2 Length: 27.56 in (70.0 cm)
Package 2 Weight: 136.21 lb(US) (61.786 kg)
Unit Type of Package 3: S03
Number of Units in Package 3: 24
Package 3 Height: 11.81 in (30.0 cm)
Package 3 Width: 11.81 in (30.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 14.82 lb(US) (6.723 kg)
Warranty: 18 months
