Details for VW3A1101

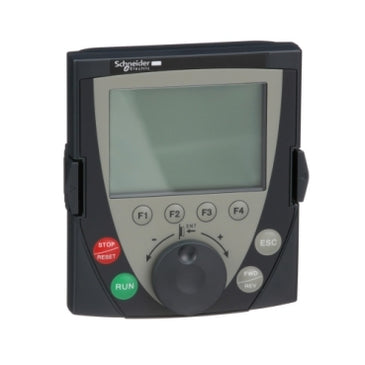

Remote Display Terminal for Altivar 71 Variable Speed Drive, 240 x 160 pixels, IP54

Remote Display Terminal for Altivar 71 Variable Speed Drive

240 x 160 pixels
Enclosure Rating: IP54

Altivar 71 Variable Frequency Drives are for constant torque applications from 1 to 700 HP. For the latest in high performance drives for heavy duty applications consider using an Altivar Process ATV900 family drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels. It weighs 180g. It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc), save and download configurations, 4 configuration files can be saved. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.

Specifications

Range of Product: Altivar
Range Compatibility: Altivar 312;Altivar 61;Altivar Lift;Altivar 32;Altivar Machine ATV320;Altivar 312 Solar;Altivar 212;Altivar 71;Altivar 61Q;Altivar 71Q
accessory / separate part category: Display and signalling accessories
accessory / separate part type: Display terminal
accessory / separate part destination: Variable speed drive
Product Specific Application: To control;adjust and configure the drive;To save and download configurations;To display the current values
IP Degree of Protection: IP54
Mounting Location: On the door of an enclosure
language: Italian;English;French;Spanish;German;Chinese
messages display capacity: 8 lines
pixel resolution: 240 x 160
Net Weight: 0.32 lb(US) (0.145 kg)
Ambient Air Temperature for Operation: 5…122 °F (-15…50 °C)
Category: 22135-ATV61-71 ACCESSORIES
Discount Schedule: CP4C
GTIN: 3389118069305
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7 cm)
Package 1 Width: 6.50 in (16.5 cm)
Package 1 Length: 9.06 in (23 cm)
Package 1 Weight: 9.70 oz (275 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 7
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 5.32 lb(US) (2.413 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 56
Package 3 Height: 30.31 in (77 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 62.66 lb(US) (28.42 kg)
Warranty: 18 months
