LC1D65AKUE | TeSys D contactor 3P 65A AC-3 up to 440V coil 100-250V AC/DC EverLink | Square D by Schneider Electric

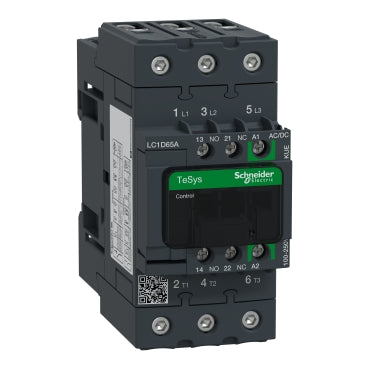

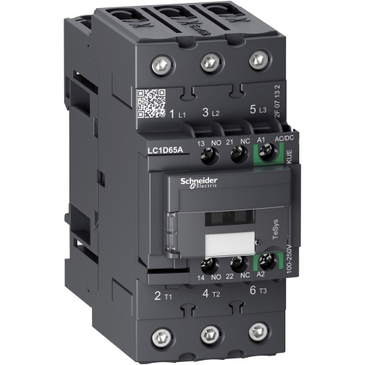

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D65AKUE
Documents and manuals
Square D LC1D65AKUE Documents
Overview
Details for LC1D65AKUE
TeSys D contactor 3P 65A AC-3 up to 440V coil 100-250V AC/DC EverLink
TeSys D Green contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 65A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Contactor is also rated for 5HP at 115VAC and 10HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 125A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic coil, wide band voltage 100-250V, AC/DC compatible, low consumption. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 2.21 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.Specifications
- range
- TeSys;TeSys Deca
- Range of Product
- TeSys D;TeSys Deca
- Product or Component Type
- Contactor
- device short name
- LC1D
- contactor application
- Motor control;Resistive load
- utilisation category
- AC-1;AC-3;AC-3e
- poles description
- 3P
- [Ue] rated operational voltage
- Power circuit <= 690 V AC 25...400 Hz
- [Ie] rated operational current
- 80 A 140 °F (60 °C)) <= 440 V AC-1 power circuit;65 A 140 °F (60 °C)) <= 440 V AC-3 power circuit;65 A 140 °F (60 °C)) <= 440 V AC-3e power circuit
- [Uc] control circuit voltage
- 100...250 V AC 50/60 Hz;100...250 V DC
- motor power kW
- 18.5 kW 220...230 V AC 50 Hz AC-3);30 kW 380...400 V AC 50 Hz AC-3);37 kW 415 V AC 50 Hz AC-3);37 kW 440 V AC 50 Hz AC-3);37 kW 500 V AC 50 Hz AC-3);37 kW 660...690 V AC 50 Hz AC-3);18.5 kW 220...230 V AC 50 Hz AC-3e);30 kW 380...400 V AC 50 Hz AC-3e);37 kW 415 V AC 50 Hz AC-3e);37 kW 440 V AC 50 Hz AC-3e);37 kW 500 V AC 50 Hz AC-3e);37 kW 660...690 V AC 50 Hz AC-3e)
- Maximum Horse Power Rating
- 5 hp 115 V at AC 60 Hz for 1 phase;10 hp 230/240 V at AC 60 Hz for 1 phase;20 hp 200/208 V at AC 60 Hz for 3 phase;20 hp 230/240 V at AC 60 Hz for 3 phase;40 hp 460/480 V at AC 60 Hz for 3 phase;50 hp 575/600 V at AC 60 Hz for 3 phase
- compatibility code
- LC1D
- pole contact composition
- 3 NO
- protective cover
- With
- [Ith] conventional free air thermal current
- 80 A 140 °F (60 °C) power circuit;10 A 140 °F (60 °C) signalling circuit
- Irms rated making capacity
- 1000 A 440 V power circuit IEC 60947;140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1
- rated breaking capacity
- 1000 A 440 V power circuit IEC 60947
- [Icw] rated short-time withstand current
- 110 A 104 °F (40 °C) - 10 min power circuit;260 A 104 °F (40 °C) - 1 min power circuit;520 A 104 °F (40 °C) - 10 s power circuit;900 A 104 °F (40 °C) - 1 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
- associated fuse rating
- 125 A gG <= 690 V type 1 power circuit;125 A gG <= 690 V type 2 power circuit;10 A gG signalling circuit IEC 60947-5-1
- average impedance
- 1.5 mOhm - Ith 80 A 50 Hz power circuit
- power dissipation per pole
- 9.6 W AC-1;6.3 W AC-3;6.3 W AC-3e
- [Ui] rated insulation voltage
- Power circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1
- overvoltage category
- III
- pollution degree
- 3
- [Uimp] rated impulse withstand voltage
- 6 kV IEC 60947
- safety reliability level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- mechanical durability
- 6 Mcycles
- electrical durability
- 1.8 Mcycles 57 A AC-3 <= 440 V;0.5 Mcycles 80 A AC-1 <= 440 V;1.8 Mcycles 57 A AC-3e <= 440 V
- control circuit type
- AC/DC 50/60 Hz AC/DC electronic
- coil technology
- Built-in bidirectional peak limiting
- control circuit voltage limits
- <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC;1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
- inrush power in VA
- 18 VA 50/60 Hz 68 °F (20 °C))
- inrush power in W
- 14 W 68 °F (20 °C))
- hold-in power consumption in VA
- 1.8 VA 50/60 Hz 68 °F (20 °C))
- hold-in power consumption in W
- 1.2 W 68 °F (20 °C)
- heat dissipation
- 1.2 W 50/60 Hz
- operating time
- 55...65 ms closing;20...120 ms opening >= 17221);20...80 ms opening >= 18011)
- maximum operating rate
- 3600 cyc/h 140 °F (60 °C)
- connections - terminals
- Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid;Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) flexible without cable end;Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) flexible with cable end;Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) solid;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) flexible without cable end;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) flexible with cable end;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) solid
- tightening torque
- Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors 0.00…0.04 in² (1…25 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) pozidriv No 2;Control circuit 15.05 lbf.in (1.7 N.m) pozidriv No 2
- auxiliary contact composition
- 1 NO + 1 NC
- auxiliary contacts type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
- signalling circuit frequency
- 25...400 Hz
- minimum switching voltage
- 17 V signalling circuit
- minimum switching current
- 5 mA signalling circuit
- insulation resistance
- > 10 MOhm signalling circuit
- non-overlap time
- 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
- Mounting Support
- Rail;Plate
- standards
- EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;CSA C22.2 No 60947-4-1;IEC 60335-1
- Product Certifications
- CCC;CSA;EAC;UL;KC;DNV-GL;LROS (Lloyds register of shipping);UKCA
- IP degree of protection
- IP20 front face IEC 60529
- climatic withstand
- IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
- permissible ambient air temperature around the device
- -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
- operating altitude
- 0...9842.52 ft (0...3000 m)
- fire resistance
- 1562 °F (850 °C) IEC 60695-2-1
- flame retardance
- V1 conforming to UL 94
- mechanical robustness
- Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor open 10 Gn for 11 ms);Shocks contactor closed 15 Gn for 11 ms)
- Height
- 4.80 in (122 mm)
- Width
- 2.17 in (55 mm)
- Depth
- 4.72 in (120 mm)
- Net Weight
- 2.21 lb(US) (1.002 kg)
- Category
- 22356-CTR;TESYS D;OPEN;9-65A AC/DC GREEN
- Discount Schedule
- I12
- GTIN
- 3606480988288
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.36 in (6.0 cm)
- Package 1 Width
- 5.43 in (13.8 cm)
- Package 1 Length
- 5.98 in (15.2 cm)
- Package 1 Weight
- 2.33 lb(US) (1.056 kg)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 9
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 21.60 lb(US) (9.797 kg)
- Warranty
- 18 months
