HOM250 | MINIATURE CIRCUIT BREAKER 120/240V 50A | Square D by Schneider Electric

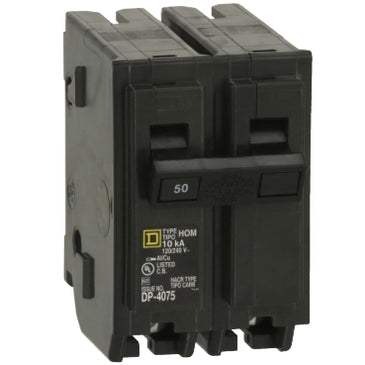

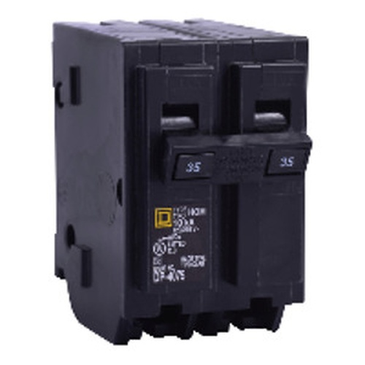

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM250
Documents and manuals
Square D HOM250 Documents
Overview
Details for HOM250
MINIATURE CIRCUIT BREAKER 120/240V 50A
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.Specifications
- Product
- Miniature circuit-breaker
- Range
- Homeline
- Current Rating
- 50 A
- Certifications
- UL Listed
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 2P
- Short Circuit Current Rating
- 10 kA
- Number of Spaces
- 2
- Circuit Breaker Type
- Standard
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Wire Size
- AWG 8...AWG 2 aluminium/copper)1
- tightening torque
- 40.71 lbf.in (4.6 N.m) (AWG 8...AWG 2)
- Height
- 3.13 in (79.50 mm)
- Width
- 2 in (50.80 mm)
- Depth
- 2.98 in (75.69 mm)
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00046-HOM/T 15-30A 1P; 15-60A 2P
- Discount Schedule
- DE3D
- GTIN
- 785901065326
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.00 in (5.08 cm)
- Package 1 Width
- 3.00 in (7.62 cm)
- Package 1 Length
- 3.20 in (8.128 cm)
- Package 1 Weight
- 11.22 oz (318.0 g)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 1800
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 1315.00 lb(US) (596.473 kg)
- Unit Type of Package 3
- BB1
- Number of Units in Package 3
- 5
- Package 3 Height
- 3.00 in (7.62 cm)
- Package 3 Width
- 2.60 in (6.604 cm)
- Package 3 Length
- 10.10 in (25.654 cm)
- Package 3 Weight
- 3.65 lb(US) (1.656 kg)
- Warranty
- Lifetime
