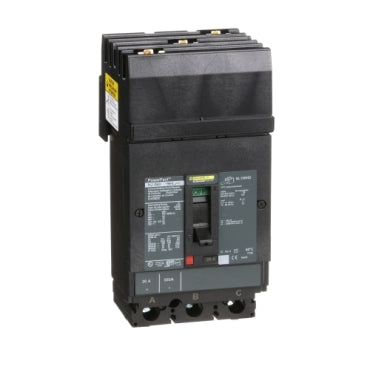

Circuit breaker, PowerPact H, I Line, thermal magnetic, 20A, 3 pole, 600V, 25kA, phase ABC

Circuit breaker, PowerPact H, I Line, thermal magnetic, 20A, 3 pole, 600V, 25kA, phase ABC

• Product or component type: Circuit breaker
• Range of product: PowerPact H
• Trip Unit Type: Thermal-magnetic
• Breaking capacity code: J
• Rated current: 20 A
• Number of Poles: 3P
• Interrupt Rating: 25 kA 600 V AC
• Rated operational voltage: 250 V DC, 600 V AC
• Electrical connection: I-Line connection line
• Magnetic hold current: 350 A

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 20A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
