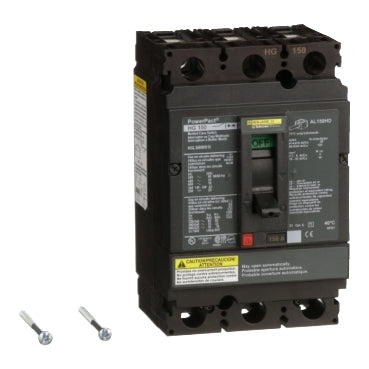

AUTOMATIC MOLDED CASE SWITCH 600V 150A
PowerPacT H-Frame automatic switches are similar in construction to, use the same accessories, and offer the same connection possibilities as the H-Frame circuit breaker version. The automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT H-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch is unit mount and has lugs on both line and load sides. This PowerPact H, 150A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT H automatic switches comply to UL, CSA, NMX, and IEC standards and are CE marked.Specifications
- Product or Component Type
- Automatic switch
- Range of Product
- PowerPact H
- trip unit technology
- Magnetic
- Line Rated Current
- 150 A
- [Ue] rated operational voltage
- 600 V AC;250 V DC
- Mounting Mode
- Unit mount
- poles description
- 3P
- short-circuit withstand
- 65 kA 240 V UL 489;35 kA 480 V UL 489;18 kA 600 V UL 489
- breaking capacity code
- G
- electrical connection
- Lugs line;Lugs load
- AWG gauge
- AWG 14...AWG 3/0 aluminium/copper)
- terminal identifier
- AL150HD
- magnetic tripping current
- 2250 A
- Height
- 6.4 in (162.56 mm)
- Width
- 2.12 in (53.85 mm)
- Depth
- 4.36 in (110.74 mm)
- tightening torque
- 44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
- Product Certifications
- CE;IEC;NMX;UL Listed;CCC;CSA
- Category
- 01115-HG;HJ;JG;JJ UNIT MT BREAKER/SWITCH
- Discount Schedule
- DE2
- GTIN
- 785901433958
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.60 in (14.224 cm)
- Package 1 Width
- 7.50 in (19.05 cm)
- Package 1 Length
- 8.80 in (22.352 cm)
- Package 1 Weight
- 4.13 lb(US) (1.875 kg)
- Warranty
- 18 months
