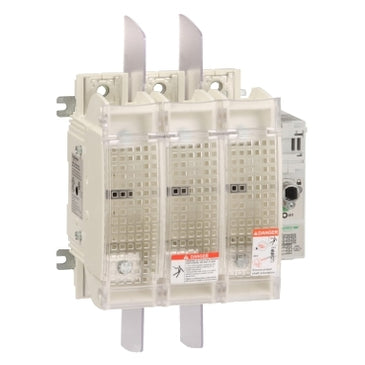

GS2MU3N | DISCONNECT SWITCH FUSIBLE 600V 200A 3P | Square D by Schneider Electric

Brand: Square DSKU: GS2MU3N

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GS2MU3N

Jump to: Overview & Specifications Reviews

Overview Details for GS2MU3N

DISCONNECT SWITCH FUSIBLE 600V 200A 3P

TeSys GS Switch Disconnector-fuse, 3 P, UL, 200 A, fuse size J

Line Rated Current: 100 A
Range: TeSys
Rated operational current: 200 A
Fuse type: UL - fuse size: J
Network type: DC,AC
Network frequency: 50/60 Hz
Product name: TeSys GS
Device short name: GS2MU
Product or component type: switch-disconnector-fuse
Device application: protection
Poles description: 3P
Protected poles description: 3t
Contacts type and composition: 3 NO

TeSys GS fuse switch-disconnector, 3 poles (3P), 200A/750V, to be used with class J fuse links up to 200A, for motor applications up to 100kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys GS
device short name: GS2MU
Product or Component Type: Switch-disconnector-fuse
Device Application: Protection
poles description: 3P
protected poles description: 3t
contacts type and composition: 3 NO
[Ith] conventional free air thermal current: 200 A 104 °F (40 °C)
[Ie] rated operational current: 200 A
fuse type: UL
fuse size: J
network type: DC;AC
Network Frequency: 50/60 Hz
type of operating handle: External frontal
Mounting Support: Plate
[Ui] rated insulation voltage: 750 V
[Uimp] rated impulse withstand voltage: 8 kV
rated operational power in W: 100 kW 400 V;140 kW 500 V;185 kW 690 V
breaking capacity: 1600 A 400 V
short-circuit withstand: 32 kA
mechanical durability: 10000 cycles
electrical durability: 6000 cycles
connections - terminals: Power circuit lugs-ring terminals 0.02…0.24 in² (16…152 mm²)
[Icm] rated short-circuit making capacity: 2 kA 400 V
tightening torque: Power circuit 75.23 lbf.in (8.5 N.m)
Standards: UL98;CSA C22.2 No 4
IP degree of protection: IP20 IEC 60529 with terminal cover)
Ambient air temperature for operation: -4…158 °F (-20…70 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) body
Height: 7.68 in (195 mm)
Width: 7.72 in (196.2 mm)
Depth: 5.12 in (130 mm)
Category: 22640-IEC DISCONNECT-GS1;LK3
Discount Schedule: I11
GTIN: 3606480512360
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.71 in (14.5 cm)
Package 1 Width: 9.65 in (24.5 cm)
Package 1 Length: 12.60 in (32 cm)
Package 1 Weight: 7.78 lb(US) (3.53 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 3
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 15.75 in (40 cm)
Package 2 Length: 23.62 in (60 cm)
Package 2 Weight: 25.54 lb(US) (11.584 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 12
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 122.00 lb(US) (55.336 kg)
