EDB24125 | E-Frame Miniature circuit-breaker 125A, 2P, 480Y/277V, 18/25kA, Bolt-on Mnt | Square D by Schneider Electric

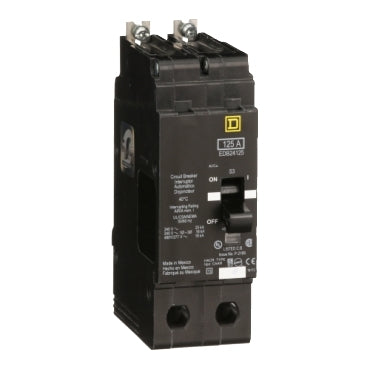

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EDB24125
Documents and manuals
Square D EDB24125 Documents
Overview
Details for EDB24125
E-Frame Miniature circuit-breaker 125A, 2P, 480Y/277V, 18/25kA, Bolt-on Mnt
E-Frame Miniature circuit-breaker 125A, 2P, 480Y/277V, 18/25kA- Range of product: 125 A Frame EDB-EGB-EJB
- Product or component type: Miniature circuit-breaker
- Device short name: EDB
- Module type: E-Frame
- Trip unit rating: 2300 A
- Line Rated Current: 125 A
- Maximum operating voltage: 480Y/277 V AC
- AWG gauge: AWG 12...AWG 2/0 aluminium, AWG 14...AWG 2/0 copper
- Breaking capacity: 18 kA 480Y/277 V AC
- Circuit breaker application: HACR rated
- Depth: 4.05 in (102.87 mm)
- Electrical connection: Lugs aluminium
- Height: 5.66 in (143.76 mm)
- Holding current: 1000 A
- Mounting mode: Bolt-on
- Number of poles: 2
- Number of spaces: 2
- Number of spaces required: 2
- Product destination: NF Panel board
- Protection type : Overload, Short-circuit
- Width: 1.96 in (49.78 mm)
- Trip unit technology: Thermal-magnetic
- Breaking capacity code: D
Specifications
- Range of Product
- 125 A Frame EDB-EGB-EJB
- Product or Component Type
- Miniature circuit-breaker
- device short name
- EDB
- module type
- E-Frame
- trip unit rating
- 2300 A
- Line Rated Current
- 125 A
- maximum operating voltage
- 480Y/277 V AC
- AWG gauge
- AWG 12...AWG 2/0 aluminium;AWG 14...AWG 2/0 copper
- breaking capacity
- 18 kA 277 V AC;25 kA 240 V AC;18 kA 480Y/277 V AC;25 kA 120 V AC;25 kA 120/240 V AC
- circuit breaker application
- HACR rated
- electrical connection
- Lugs aluminium
- Holding Current
- 1000 A
- local signalling
- Trip indicator
- Mounting Mode
- Bolt-on
- number of poles
- 2
- number of spaces
- 2
- number of spaces required
- 2
- product destination
- NF panelboard
- Protection Type
- Overload;Short-circuit
- trip unit technology
- Thermal-magnetic
- breaking capacity code
- D
- tightening torque
- 34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
- Height
- 5.66 in (143.76 mm)
- Width
- 1.96 in (49.78 mm)
- Depth
- 4.05 in (102.87 mm)
- Net Weight
- 3 lb(US) (1.36 kg)
- Product Certifications
- cULus
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00931-EDB CIRCUIT BREAKERS
- Discount Schedule
- DE2
- GTIN
- 785901311072
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.70 in (9.4 cm)
- Package 1 Width
- 6.30 in (16.0 cm)
- Package 1 Length
- 9.88 in (25.1 cm)
- Package 1 Weight
- 2.56 lb(US) (1.16 kg)
- Warranty
- 18 months
