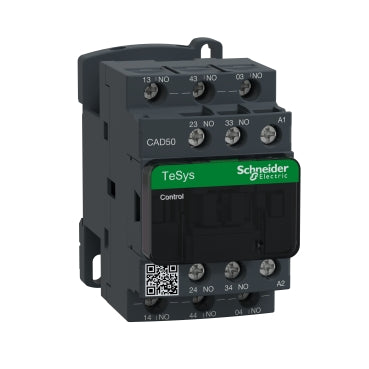

TeSys D control relay, 5 NO, <= 690 V, 240 V AC standard coil
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).Specifications
- range
- TeSys;TeSys Deca
- product name
- TeSys CAD
- Product or Component Type
- Control relay
- device short name
- CAD
- contactor application
- Control circuit
- utilisation category
- AC-14;AC-15;DC-13
- pole contact composition
- 5 NO
- [Ue] rated operational voltage
- <= 690 V AC 25...400 Hz
- control circuit type
- AC 50/60 Hz
- [Uc] control circuit voltage
- 240 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 6 kV IEC 60947
- [Ith] conventional free air thermal current
- 10 A 140 °F (60 °C)
- Irms rated making capacity
- 140 A AC IEC 60947-5-1;250 A DC IEC 60947-5-1
- [Icw] rated short-time withstand current
- 100 A - 1 s;120 A - 500 ms;140 A - 100 ms
- associated fuse rating
- 10 A gG IEC 60947-5-1
- [Ui] rated insulation voltage
- 600 V UL;600 V CSA;690 V IEC 60947-5-1
- Mounting Support
- Plate;Rail
- connections - terminals
- screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end;screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid without cable end;screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid without cable end
- tightening torque
- 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
- control circuit voltage limits
- 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
- operating time
- 12...22 ms coil energisation and NO closing;4...12 ms coil de-energisation and NO opening
- mechanical durability
- 30 Mcycles
- maximum operating rate
- 180 cyc/mn
- inrush power in VA
- 70 VA 50 Hz 68 °F (20 °C))
- hold-in power consumption in VA
- 8 VA 50 Hz 68 °F (20 °C))
- minimum switching voltage
- 17 V
- minimum switching current
- 5 mA
- non-overlap time
- 1.5 ms on energisation between NC and NO contact;1.5 ms on de-energisation between NC and NO contact
- insulation resistance
- > 10 MOhm
- mechanical robustness
- Shocks control relay open10 Gn for 11 ms IEC 60068-2-27;Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27;Vibrations control relay open2 Gn;5...300 Hz IEC 60068-2-6;Vibrations control relay closed4 Gn;5...300 Hz IEC 60068-2-6
- Height
- 3.03 in (77 mm)
- Width
- 1.77 in (45 mm)
- Depth
- 3.31 in (84 mm)
- Net Weight
- 1.28 lb(US) (0.58 kg)
- standards
- BS 4794;EN 60947-5;IEC 60947-5-1;NF C 63-140;VDE 0660;IEC 60335-1
- Product Certifications
- UL;CSA;UKCA
- IP degree of protection
- IP2x front face VDE 0106
- protective treatment
- TH IEC 60068
- ambient air temperature for operation
- -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
- Ambient Air Temperature for Storage
- -76…176 °F (-60…80 °C)
- operating altitude
- 0...9842.52 ft (0...3000 m)
- Category
- 22371-RELAYS;CONTROL
- Discount Schedule
- I12
- GTIN
- 3389110403589
- Returnability
- No
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.97 in (5.000 cm)
- Package 1 Width
- 3.70 in (9.400 cm)
- Package 1 Length
- 4.45 in (11.300 cm)
- Package 1 Weight
- 12.59 oz (357 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 20
- Package 2 Height
- 5.91 in (15.000 cm)
- Package 2 Width
- 11.81 in (30.000 cm)
- Package 2 Length
- 15.75 in (40.000 cm)
- Package 2 Weight
- 16.25 lb(US) (7.371 kg)
- Warranty
- 18 months
