BJL36070 | MD CSE CIRCBRKR 600Y/347V70A | Square D by Schneider Electric

Brand: Square DSKU: BJL36070

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BJL36070

Jump to: Overview & Specifications Reviews

Overview Details for BJL36070

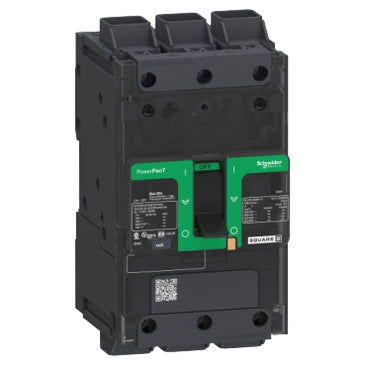

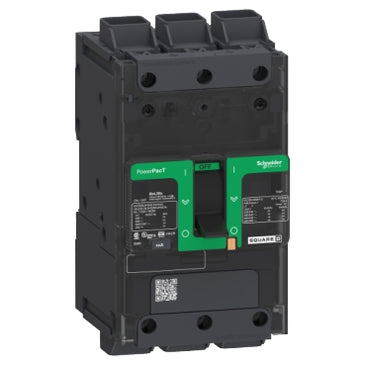

MD CSE CIRCBRKR 600Y/347V70A

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 70A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

range: PowerPact
product name: PowerPact B
device short name: BJ 070
Product or Component Type: Circuit breaker
Device Application: Distribution
Line Rated Current: 70 A
Number of Poles: 3P
Control Type: Toggle
breaking capacity code: J
breaking capacity: 100 kA 208Y/120 V AC 50/60 Hz UL 489;100 kA 240 V AC 50/60 Hz UL 489;65 kA 480/277 V AC 50/60 Hz UL 489;65 kA 480 V AC 50/60 Hz UL 489;25 kA 600Y/347 V AC 50/60 Hz UL 489;50 kA 250 V DC UL 489
[Ue] rated operational voltage: 690 V AC 50/60 Hz UL 489
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 100 kA 220...240 V AC 50/60 Hz IEC 60947-2;25 kA 500...525 V AC 50/60 Hz IEC 60947-2;2.5 kA 690 V AC 50/60 Hz IEC 60947-2;65 kA 380...415 V AC 50/60 Hz IEC 60947-2;65 kA 440 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Thermal-magnetic
continuous current rating: 80 %
[Ui] rated insulation voltage: 800 V IEC 60947-2
suitability for isolation: Yes IEC 60947-2
utilisation category: Category A
Mechanical durability: 20000 cycles IEC 947-1 Annex K ed 5.2
Electrical durability: 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
connection pitch: 1.06 in (27 mm)
AWG gauge: AWG 6...AWG 2/0 fine stranded aluminium/copper;AWG 14...AWG 3/0 rigid or stranded aluminium/copper
local signalling: Presence of auxiliary contacts flag green)
mounting mode: Clip-on 35 x 15 mm symmetrical DIN rail);By screws plate)
electrical connection: Everlink lug line;Everlink lug load
tightening torque: 44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4);79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
number of slots: 1 auxiliary switch OF plug-in);1 voltage release MN or MX plug-in);1 alarm switch SD plug-in)
Power wire stripping length: 0.79 in (20 mm)
Color: Gray RAL 7016)
9 mm pitches: 9
Height: 5.39 in (137 mm)
Width: 3.19 in (81 mm)
Depth: 3.15 in (80 mm)
Net Weight: 2.37 lb(US) (1.074 kg)
Quantity per Set: Set of 1
circuit breaker application: HACR rated
quality labels: CE
Standards: CSA C22.2 No 5;EN/IEC 60947-2;UL 489;EN/IEC 60947-5-1;GB 14048.2;NEMA AB1;NMX J-266
product certifications: UL;IEC;CCC;EAC;CSA;NOM
IP degree of protection: Front cover IP40 IEC 60529
IK degree of protection: IK07 IEC 62262
pollution degree: 3 IEC 60947-1
Ambient air temperature for operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating;5000 m with derating
Category: 01132-BJ/BK UNIT MOUNT BREAKER/SWITCH
Discount Schedule: DE2
GTIN: 3606481186041
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.00 in (10.16 cm)
Package 1 Width: 7.00 in (17.78 cm)
Package 1 Length: 10.50 in (26.67 cm)
Package 1 Weight: 2.92 lb(US) (1.325 kg)
