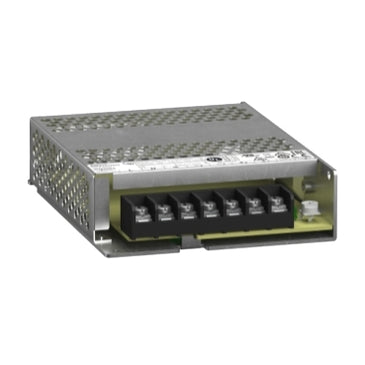

ABLP1A24045 | POWER SUPPLY 24V 4.5A PANEL | Square D by Schneider Electric

Brand: Square DSKU: ABLP1A24045

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ABLP1A24045

Jump to: Overview & Specifications Reviews

Overview Details for ABLP1A24045

POWER SUPPLY 24V 4.5A PANEL

This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 4.5A at 24V DC and a rated power of 100W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 97mm, its height is 30mm, its depth is 129mm. It weighs 0.300kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.

Specifications

Range of Product: Modicon Power Supply
Product or Component Type: Power supply
power supply type: Regulated switch mode
variant option: Panel mount
Enclosure Material: Aluminum
Nominal input voltage: 100...240 V AC single phase
Kw Rating: 100 W
output voltage: 24 V DC
power supply output current: 4.5 A
Input voltage limits: 90...264 V AC
Nominal network frequency: 50…60 Hz
Network system compatibility: TN;TT;IT
maximum leakage current: 1 mA 240 V AC
input protection type: Integrated fuse (not interchangeable) 4 A
inrush current: 45 A 115 V;85 A 230 V
power factor: 0.55 at 115 V AC;0.45 at 230 V AC
efficiency: 89 % 230 V AC
Output voltage adjustment: 21.6...26.4 V
power dissipation in W: 20 W
current consumption: < 2.3 A 115 V AC;< 1.5 A 230 V AC
Turn-on time: < 500 ms
holding time: > 20 ms 115 V AC;> 40 ms 230 V AC
Startup with capacitive loads: 4000 µF
residual ripple: < 150 mV
Expected capacitor life time: 10 year(s)
meantime between failure [MTBF]: 700000 h at 77 °F (25 °C);full load conforming to SR 332
output protection type: Against overload and short-circuits automatic reset;Against over temperature manual reset;Against overvoltage manual reset
connections - terminals: Screw connection 0.75...2.5 mm²;AWG 18...AWG 14) without wire end ferrule;Screw connection 0.75...1.5 mm²;AWG 18...AWG 16) with wire end ferrule
line and load regulation: < 0.5 % network 0 to 100 % load at 77 °F (25 °C);< 1 % network full voltage range in line at 77 °F (25 °C)
status LED: 1 LED (Green) output voltage
Depth: 5.08 in (129 mm)
Height: 1.18 in (30 mm)
Width: 3.82 in (97 mm)
Net Weight: 0.66 lb(US) (0.3 kg)
output coupling: Parallel;Serial
mounting support: Top hat type TH35-15 rail IEC 60715;Top hat type TH35-7.5 rail IEC 60715;Double-profile DIN rail;panel mounting
supply: SELV EN/IEC 60950-1;SELV EN/IEC 60204-1;SELV IEC 60364-4-41
dielectric strength: 3750 V AC with input to output
Standards: EN 62368-1;EN 61010-1;EN 61010-2-201;EN 61204-3;EN 61000-6-1;EN 61000-6-2;EN 61000-6-3;EN 61000-6-4;EN 61000-3-2;EN 61000-3-3;UL 62368-1;UL 61010-1;UL 61010-2-201;CSA C22.2 No 62368-1;CSA C22.2 No 61010-1;CSA C22.2 No 61010-2-201;EN/IEC 62368-1
product certifications: CE;CULus;EAC;RCM;CB Scheme;KC
environmental characteristic: 3M4 IEC 60721-3-3
operating altitude: 5000 m
shock resistance: 100 m/s² 11 ms
IP degree of protection: IP10
Ambient air temperature for operation: -22…122 °F (-30…50 °C) without derating mounting position A;B;F;G < 6561.68 ft (2000 m);122…158 °F (50…70 °C) with current derating of 2 % per °C mounting position A;B;F;G < 6561.68 ft (2000 m)
electrical shock protection class: Class I
pollution degree: 2
vibration resistance: 3 mm 2…9 Hz)IEC 60068-2-6;10 m/s² 9…200 Hz)IEC 60068-2-6
Electromagnetic immunity: Immunity to electrostatic discharge 6 kV contact discharge) EN/IEC 61000-4-2;Immunity to electrostatic discharge 9 kV air discharge) EN/IEC 61000-4-2;Immunity to conducted RF disturbances 10 V/m 80 MHz...2 GHz) EN/IEC 61000-4-3;Immunity to conducted RF disturbances 5 V/m 2...2.7 GHz) EN/IEC 61000-4-3;Immunity to conducted RF disturbances 3 V/m 2.7...6 GHz) EN/IEC 61000-4-3;Immunity to fast transients 4 kV on input-output) EN/IEC 61000-4-4;Surge immunity test 3 kV between power supply and earth) EN/IEC 61000-4-5;Surge immunity test 1.5 kV between phases) EN/IEC 61000-4-5;Immunity to conducted RF disturbances 10 V 0.15...80 MHz) EN/IEC 61000-4-6;Immunity to magnetic fields 30 A/m 50...60 Hz) EN/IEC 61000-4-8;Immunity to voltage dips EN/IEC 61000-4-11;Disturbing field emission EN 55016-2-3;Limits for harmonic current emissions EN 61000-3-2;Conducted disturbance emission EN 55016-1-2;Conducted disturbance emission EN 55016-2-1
electromagnetic emission: Conducted emissions EN 61000-6-3;Radiated emissions EN 61000-6-4
Category: 22524-ABL1 DEDICATED POWER SUPPLIES
Discount Schedule: CP12
GTIN: 3606481500281
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.57 in (4.0 cm)
Package 1 Width: 5.83 in (14.8 cm)
Package 1 Length: 7.28 in (18.5 cm)
Package 1 Weight: 14.85 oz (421.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 19
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 18.79 lb(US) (8.522 kg)
