ABL8RPM24200 | Phaseo Regulated Switch Mode, 20A, 1 or 2-Phase, for Regulated SMPS, IP20 | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: ABL8RPM24200

Web Price:

$758.36
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

ABL8RPM24200 | Phaseo Regulated Switch Mode, 20A, 1 or 2-Phase, for Regulated SMPS, IP20 | Square D by Schneider Electric

Square D | ABL8RPM24200

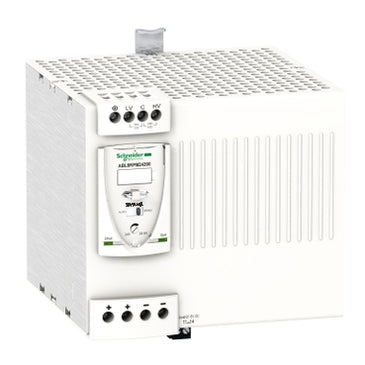

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ABL8RPM24200

Documents and manuals

Square D ABL8RPM24200 Documents

Overview

Details for ABL8RPM24200

Phaseo Regulated Switch Mode, 20A, 1 or 2-Phase, for Regulated SMPS, IP20

Phaseo Regulated Switch Mode
  • Power Supply Output Current: 20A
  • for Regulated SMPS
  • Rated Power in W: 480W
  • Degree of Protection: IP20 conforming to EN/IEC 60529
  • Connections-Terminals: Screw Type Terminals
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,600kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD16 and GB2CD12 thermal magnetic circuit breakers The GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Specifications

Range of Product
Modicon Power Supply
Product or Component Type
Power supply
power supply type
Regulated switch mode
Nominal input voltage
100...120 V AC single phase N-L1;200...240 V AC phase to phase L1-L2
Kw Rating
480 W
output voltage
24 V DC
power supply output current
20 A
permissible temporary current boost
1.5 x In for 4 s)
anti-harmonic filter
Low frequency harmonic currents
Input voltage limits
85...132 V AC;170...264 V AC
inrush current
30 A
power factor
0.68 at 240 V AC;0.69 at 120 V AC
efficiency
88 %
Output voltage adjustment
24...28.8 V adjustable
power dissipation in W
57.6 W
provided equipment
Power factor correction filter IEC 61000-3-2
output protection type
Against overload manual or automatic reset;Against overvoltage 30...32 V;manual reset;Against short-circuits manual or automatic reset;Against undervoltage tripping if U < 21.6 V;Thermal automatic reset
connections - terminals
Removable screw terminal block 2 x 2.5 mm²;diagnostic relay;Screw type terminals 3 x 0.5...3 x 4 mm²;AWG 22...AWG 12) input connection;Screw type terminals 1 x 0.5...1 x 4 mm²;AWG 22...AWG 12) input ground connection;Screw type terminals 4 x 0.5...4 x 4 mm²;AWG 22...AWG 12) output connection
status LED
1 LED (green and red) output voltage;1 LED (green;red and orange) output current
Depth
5.71 in (145 mm)
Height
4.92 in (125 mm)
Width
5.75 in (146 mm)
Net Weight
3.53 lb(US) (1.6 kg)
output coupling
Series;Parallel
Marking
CE
mounting support
35 x 7.5 mm symmetrical DIN rail;35 x 15 mm symmetrical DIN rail
operating position
Vertical
supply
SELV EN/IEC 60950-1;SELV EN/IEC 60204-1;SELV IEC 60364-4-41
dielectric strength
2500 V with between input and ground;3000 V with between input and output;500 V with between output and ground
Standards
CSA C22.2 No 60950-1;UL 508;EN/IEC 62368-1
product certifications
CCSAus;EAC;KC;RCM;UL
environmental characteristic
EMC EN 61000-6-1;EMC EN 61000-6-3;EMC EN 55024;EMC EN/IEC 61000-6-4;EMC EN/IEC 61204-3;Safety EN/IEC 60950-1;Safety EN/IEC 61204-3
operating altitude
6561.68 ft (2000 m)
IP degree of protection
IP20 conforming to EN/IEC 60529;IP10
Ambient air temperature for operation
122…140 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m);-13…122 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m)
Category
22525-ABL8 AND ABL7 POWER SUPPLIE
Discount Schedule
CP12
GTIN
3389119405638
Returnability
Yes
Country of origin
PH
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.33 in (16.084 cm)
Package 1 Width
6.97 in (17.706 cm)
Package 1 Length
7.00 in (17.786 cm)
Package 1 Weight
6.22 lb(US) (2.82 kg)
Unit Type of Package 2
S06
Number of Units in Package 2
36
Package 2 Height
28.94 in (73.5 cm)
Package 2 Width
23.62 in (60.0 cm)
Package 2 Length
31.50 in (80.0 cm)
Package 2 Weight
223.81 lb(US) (101.52 kg)
Warranty
18 months
