A9MEM3175 | IEM3175 Energy meter, 63 A, LON, 1 Digital I, Multi-tariff | Square D by Schneider Electric

Brand: Square DSKU: A9MEM3175

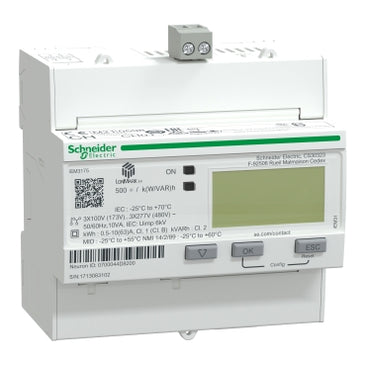

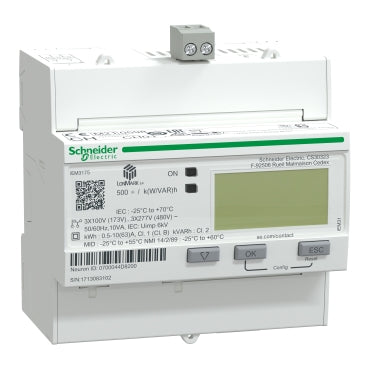

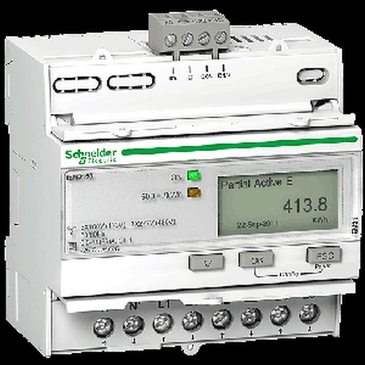

Square D | A9MEM3175
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A9MEM3175

Overview Details for A9MEM3175

IEM3175 Energy meter, 63 A, LON, 1 Digital I, Multi-tariff

IEM3175 Energy meter
  • Poles description : 1P + N, 3P, 3P + N
  • Rated current : 63 A
  • Rated voltage : 100…277 V, 173…480 V
  • Type of measurement : Active and reactive energy, Active and reactive power, Current, Voltage
  • Number of inputs : 1 digital 0...5 V/11...40 V 24 V DC
  • Number of outputs : 0
  • Device application : Multi-tariff, Sub billing, Partial meter
  • Input type : Direct input
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is LON with screw terminal support. There is one programmable digital input that can be used as a Tariff control or WAGES input. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Specifications

range
Acti 9
range of product
Acti 9 iEM3000
device short name
iEM3175
Product or Component Type
Energy meter
poles description
3P;3P + N;1P + N
type of measurement
Active and reactive energy;Active and reactive power;Current;Voltage
metering type
Active;reactive;apparent energy (signed;four quadrant)
Device Application
Sub billing;Partial meter;Multi-tariff
accuracy class
Class 1 active energy IEC 62053-21;Class 1 active energy IEC 61557-12;Class B active energy EN 50470-3
input type
direct input
Line Rated Current
63 A
rated voltage
100…277 V;173…480 V
Network Frequency
50 Hz;60 Hz
Technology Type
Electronic
Display Type
LCD display
sampling rate
32 samples/cycle
measurement current
0…63 A
maximum value measured
99999999.9 kWh
tariff input
Tariff 4)
communication port protocol
LON 3750 V
communication port support
Screw terminal block LonWorks TP/FT-10
local signalling
Green indicator light power ON;Yellow flashing LED accuracy checking;alarm overload
number of inputs
1 digital 0...5 V/11...40 V 24 V DC
Number of Outputs
0
Mounting Mode
Clip-on
Mounting Support
DIN rail
connections - terminals
screw terminals 0.02 in² (16 mm²)
overvoltage category
III
Standards
BS EN 61557-12;IEC 61557-12;EN 61557-12;BS EN 61326-1;IEC 61326-1;EN 61326-1;BS EN 62052-11;IEC 62052-11;EN 62052-11;BS EN 62053-21;IEC 62053-21;EN 62053-21;BS EN 62052-23;IEC 62053-23;EN 62052-23;BS EN 62052-31;IEC 62052-31;EN 62052-31;BS EN 61010-1;EN 61010-1;IEC 61010-1;UL 61010-1;BS EN 61010-2-30;IEC 61010-2-30;EN 61010-2-30;UL 61010-2-30;BS EN 50470-3;EN 50470-3;BS EN 50470-1;EN 50470-1;ANSI C12.16
product certifications
CE IEC 61010-1 safety);CE EN 61557-12 power monitor);CE EN/IEC 61326-1 EMC);UKCA BS EN 61010-1 safety);UKCA BS EN 61557-12 power monitor);UKCA BS EN 61326-1 EMC);CULus UL 61010-1 safety);CULus EN 61010-1 safety);EAC EN 50470-3 sub-meter);RCM EN 62052 sub-meter);KZ EN 50470-3 sub-meter);METAS EN 50470-1 sub-meter);MID EN 50470-3 sub-meter);MID EN 50470-1 sub-meter);NMI NMI M 6-1
IP degree of protection
Front panel IP40 IEC 60529;Body IP20 IEC 60529
pollution degree
2
relative humidity
5…95 % 122 °F (50 °C)
ambient air temperature for operation
-13…131 °F (-25…55 °C) - MID;-13…140 °F (-25…60 °C) - NMI;-13…140 °F (-25…60 °C) - IEC
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Operating altitude
< 6561.68 ft (2000 m)
Color
White
9 mm pitches
10
Width
3.54 in (90 mm)
Height
3.74 in (95 mm)
Depth
2.72 in (69 mm)
Category
09786-SE ENTRY POWER METER
Discount Schedule
PL1
GTIN
3606480616495
Returnability
No
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.15 in (8.0 cm)
Package 1 Width
3.74 in (9.5 cm)
Package 1 Length
4.13 in (10.5 cm)
Package 1 Weight
16.16 oz (458.0 g)
Unit Type of Package 2
S03
Number of Units in Package 2
30
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
31.70 lb(US) (14.377 kg)
Unit Type of Package 3
P12
Number of Units in Package 3
480
Package 3 Height
27.56 in (70.0 cm)
Package 3 Width
47.24 in (120.0 cm)
Package 3 Length
31.50 in (80.0 cm)
Package 3 Weight
485.72 lb(US) (220.32 kg)
