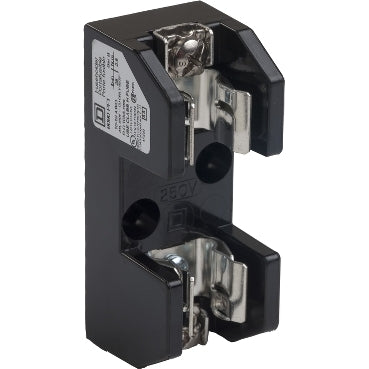

9080PF1 | TERMINAL BLOCK CLASS H OR K FUSEHOLDER 1 POLE 250V 30A | Square D by Schneider Electric

Brand: Square DSKU: 9080PF1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080PF1

Jump to: Overview & Specifications Reviews

Overview Details for 9080PF1

TERMINAL BLOCK CLASS H OR K FUSEHOLDER 1 POLE 250V 30A

TERMINAL BLOCK CLASS H OR K FUSEHOLDER

Line Rated Current : 30 A
System Voltage : <= 250 V AC/DC
Fuse type : H and K
Fuse size : 0.5625 x 2 in
Number of poles : 1
Electrical connection : Pressure wire clamp

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 amperes. This one pole fuse holder will accept class H and class k fuses. The rating of the fuse can be up to 30 amperes with a 250 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 10,000 ampere. This fuse holder is UL listed and CSA certified.

Specifications

Range: 9080FB
Product: Fuse holder
Current Rating: 30 A
[Ue] rated operational voltage: <= 250 V AC/DC
fuse type: H and K
fuse size: 0.5625 x 2 in
number of poles: 1
Electrical Connection: Pressure wire clamp
Wire Gauge: AWG 18...AWG 10 copper or aluminium
SCCR: 10 kA UL 512
Product Certifications: CE;UL listed file E40747 CCN IZLT;CSA file 70360 class 6225 01
Operating Temperature: -40…257 °F (-40…125 °C)
Mounting Type: Surface mount
Block Material: Thermoplastic block
wire stripping length: 0.4375 in (11.11 mm)
Terminal Tightening Torque: screw terminals 25 lbf.in (2.82 N.m) AWG 14...AWG 10 copper
Height: 3 in (76.20 mm)
Width: 1.12 in (28.45 mm)
Depth: 1.38 in (35.05 mm)
Category: 21704-9080 K (BLOCKS ONLY)
Discount Schedule: CP1
GTIN: 785901567004
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.30 in (3.302 cm)
Package 1 Width: 2.30 in (5.842 cm)
Package 1 Length: 3.00 in (7.62 cm)
Package 1 Weight: 2.88 oz (81.647 g)
Warranty: 18 months
