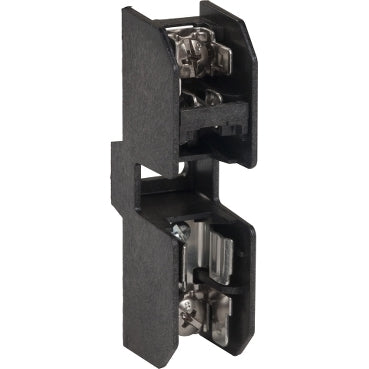

9080FB1611CC | Terminal block, Linergy, fuse holder, Class CC, 30A, 600 V, 1 pole | Square D by Schneider Electric

Brand: Square DSKU: 9080FB1611CC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080FB1611CC

Jump to: Overview & Specifications Reviews

Overview Details for 9080FB1611CC

Terminal block, Linergy, fuse holder, Class CC, 30A, 600 V, 1 pole

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This one pole fuse holder will accept class CC fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 200,000 Amp. This fuse holder is UL listed and CSA certified. Type S starters are UL listed and CSA certified for global applications.

Specifications

Range: 9080FB
Product: Fuse holder
Current Rating: 30 A
[Ue] rated operational voltage: <= 600 V AC/DC
fuse type: CC
fuse size: 0.4063 x 1.5 in
number of poles: 1
Electrical Connection: Pressure wire clamp
Wire Gauge: AWG 14...AWG 10 copper or aluminium
SCCR: 200 kA UL 512
Product Certifications: UL recognized E40747 CCN IZLT2;CSA file 70360 class 6225 01;CE
Operating Temperature: -40…257 °F (-40…125 °C)
Mounting Type: Surface mount
Block Material: Thermoplastic block
wire stripping length: 0.4375 in (11.11 mm)
Terminal Tightening Torque: screw terminals 25 lbf.in (2.82 N.m) AWG 14...AWG 10 copper
Height: 3.13 in (79.50 mm)
Width: 0.85 in (21.59 mm)
Depth: 1.29 in (32.77 mm)
Category: 21701-9080 FB
Discount Schedule: CP1
GTIN: 785901097198
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.90 in (2.286 cm)
Package 1 Width: 1.40 in (3.556 cm)
Package 1 Length: 3.10 in (7.874 cm)
Package 1 Weight: 1.44 oz (40.823 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 50
Package 2 Height: 3.90 in (9.906 cm)
Package 2 Width: 6.90 in (17.526 cm)
Package 2 Length: 9.70 in (24.638 cm)
Package 2 Weight: 4.58 lb(US) (2.077 kg)
Warranty: 18 months
