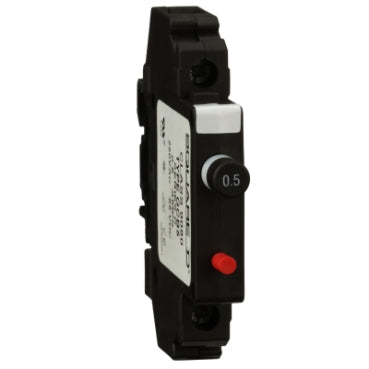

9080GCB05 | Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 0.5A, 250 VAC / 65 VDC | Square D by Schneider Electric

Brand: Square DSKU: 9080GCB05

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080GCB05

Jump to: Overview & Specifications Reviews

Overview Details for 9080GCB05

Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 0.5A, 250 VAC / 65 VDC

Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 0.5 ampere. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.

Specifications

Range of Product: 9080GCB
Product or Component Type: Circuit Protector
Trip Unit Type: Thermal-magnetic
Electrical Connection: Box lugs
Protection Type: Overcurrent
contact operation: Trip-free
Device Application: Industrial Application
Line Rated Current: 0.5 A
Number of Poles: 1P
Votlage Rating: 250 V AC;65 V DC
Wire Size: AWG 16...AWG 10 copper
wire stripping length: 0.5 in (12.70 mm)
Terminal Tightening Torque: Control circuit 7 lbf.in (0.79 N.m) cage type connector
Terminal Rating: Factory wiring only
Operating Temperature: -22…140 °F (-30…60 °C)
Calibration Temperature: 70 °F (21 °C)
Mounting Support: 9080GH track;35 mm DIN rail
Height: 3.45 in (87.63 mm)
Width: 3.15 in (80.01 mm)
Depth: 0.5 in (12.70 mm)
Product Certifications: CSA file 025490 class 3211 07;UL recognized E233026 CCN QVNU2;CE
Standards: UL 1077;DIN 57470;CSA C22.2 No 235
Category: 21703-9080 GCB
Discount Schedule: CP5
GTIN: 785901481102
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.00 in (2.54 cm)
Package 1 Width: 3.30 in (8.382 cm)
Package 1 Length: 3.70 in (9.398 cm)
Package 1 Weight: 2.56 oz (72.575 g)
Warranty: 18 months
