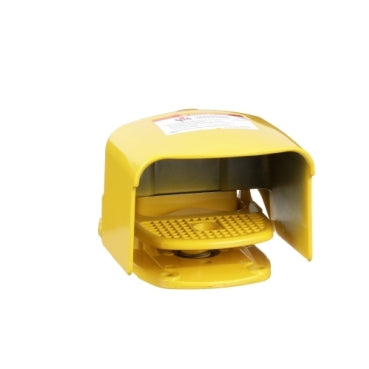

9002AW14 | Foot Switch, Harmony, industrial, pedal and side shields, 0.6A at 600 VAC, DPDT contact, NEMA 2, 4, 13 enclosure | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9002AW14
Documents and manuals
Square D 9002AW14 Documents
Overview
Details for 9002AW14
Foot Switch, Harmony, industrial, pedal and side shields, 0.6A at 600 VAC, DPDT contact, NEMA 2, 4, 13 enclosure
9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.Specifications
- Range
- 9002AW
- Product
- Foot switch
- Contact Operation
- 1 step
- Certifications
- UL Listed;CSA
- Cable Entry
- 0.75 inch NPT conduit entrance
- Contact Arrangement
- DPDT
- Enclosure Rating
- NEMA 2/4/13
- Voltage Rating
- 600 V AC/DC
- Protection
- Side shield;Pedal shield
- Operator Action
- Spring return
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;0.75 A 480 V AC inductive control circuit UL 508;0.6 A 600 V AC inductive control circuit UL 508;3 A 120 V AC resistive control circuit UL 508;0.2 A 125 V DC resistive control circuit UL 508
- Height
- 4.84 in (123 mm)
- Width
- 5.39 in (137 mm)
- Depth
- 9.02 in (229 mm)
- Category
- 21441-9002 AW FOOT SWITCHES
- Discount Schedule
- CS1
- GTIN
- 785901817413
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.71 in (14.5 cm)
- Package 1 Width
- 5.79 in (14.7 cm)
- Package 1 Length
- 12.20 in (31.0 cm)
- Package 1 Weight
- 4.45 lb(US) (2.02 kg)
- Warranty
- 18 months
