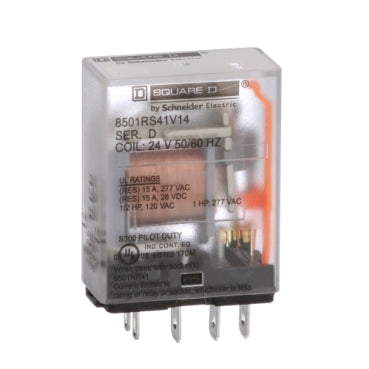

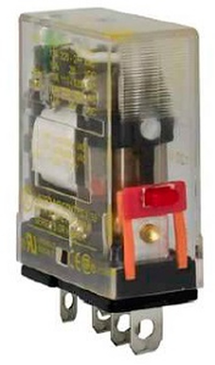

RELAY 240VAC 12AMP TYPE R +OPTIONS
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.Specifications
- product range
- 8501R
- product type
- Miniature Relay
- Relay Type
- Standard
- mounting type
- Socket
- contact composition
- SPDT
- [Uc] control circuit voltage
- 24 V AC
- pilot light
- No indicator
- manual operator
- Without test button
- horsepower rating
- 0.5 120 V AC;1 277 V AC
- breaking capacity
- 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;15 A 120 V AC resistive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;15 A 28 V DC resistive control circuit UL 508
- maximum switching voltage
- 300 V AC;30 V DC
- contact material
- Silver alloy;gold flashed
- operating time
- 20 ms - pick-up;20 ms - drop-out
- shape of pins
- Spade
- for use with
- 8501NR41
- Height
- 1.07 in (27.3 mm)
- Width
- 0.55 in (14 mm)
- Depth
- 1.65 in (41.8 mm)
- ambient temperature range - operational
- -40…131 °F (-40…55 °C)
- product certifications
- UL Listed;UL Recognized;CSA;CE
- Category
- 21143-8501 R
- Discount Schedule
- CP2
- GTIN
- 785901137023
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.00 in (2.54 cm)
- Package 1 Width
- 1.40 in (3.556 cm)
- Package 1 Length
- 2.00 in (5.08 cm)
- Package 1 Weight
- 0.96 oz (27.216 g)
- Warranty
- 18 months
