8501NR82 | RELAY SOCKET | Square D by Schneider Electric

Brand: Square DSKU: 8501NR82
Square D | 8501NR82

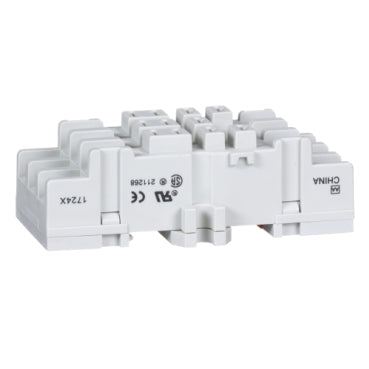

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8501NR82
Jump to: Overview & Specifications Reviews

Overview Details for 8501NR82

RELAY SOCKET

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KUR and 8501KUDR relays will plug into this relay socket which is designed for 11 spade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Specifications

product range
8501N
product type
Relay Socket
pin shape
Spade
number of pins
11
[In] rated current
15 A 300 V AC
electrical connection
Double tiered screw clamp terminals
mounting type
Panel;DIN rail
package quantity
1
certifications
UL Recognized;CSA;CE
Height
3.15 in (80 mm)
Width
1.69 in (43 mm)
Depth
1.02 in (26 mm)
Category
21142-8501 N
Discount Schedule
CP2
GTIN
785901583868
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.10 in (2.794 cm)
Package 1 Width
1.80 in (4.572 cm)
Package 1 Length
3.20 in (8.128 cm)
Package 1 Weight
2.24 oz (63.503 g)
Warranty
18 months
