8501NR51 | RELAY SOCKET | Square D (OBSOLETE)

Brand: Square DSKU: 8501NR51

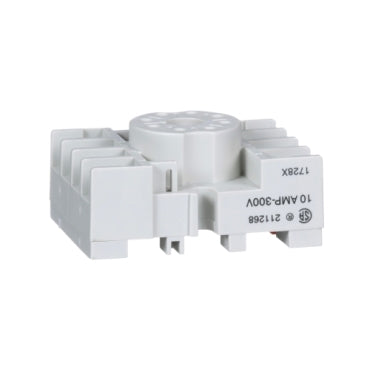

Square D | 8501NR51
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8501NR51
Jump to: Overview & Specifications Reviews

Overview Details for 8501NR51

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

RELAY SOCKET

Relay Socket 8 pin
  • Rated current : 15 A at 300 V AC, 5 A at 600 V AC
  • mounting type : DIN rail, Panel
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Specifications

product range
8501N
product type
Relay Socket
pin shape
Tubular
number of pins
8
[In] rated current
15 A 300 V AC;5 A 600 V AC
electrical connection
Single tiered screw clamp terminals
mounting type
DIN rail;Panel
package quantity
1
certifications
UL Recognized;CSA;CE
Height
2.13 in (54 mm)
Width
1.57 in (40 mm)
Depth
0.97 in (24.6 mm)
Category
21142-8501 N
Discount Schedule
CP2
GTIN
785901583592
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.00 in (2.54 cm)
Package 1 Width
1.70 in (4.318 cm)
Package 1 Length
2.20 in (5.588 cm)
Package 1 Weight
1.60 oz (45.359 g)
Warranty
18 months
