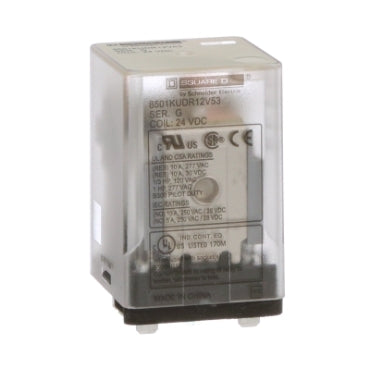

8501KUDR12V53 | PLUG IN RELAY, 8 blade, DPDT, 10 amp at 277 VAC, 24 VDC coil | Square D by Schneider Electric

Brand: Square DSKU: 8501KUDR12V53

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501KUDR12V53

Jump to: Overview & Specifications Reviews

Overview Details for 8501KUDR12V53

PLUG IN RELAY, 8 blade, DPDT, 10 amp at 277 VAC, 24 VDC coil

8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

product range: 8501K
product type: Relay
Relay Type: General purpose
mounting type: Socket
contact composition: DPDT
[Uc] control circuit voltage: 24 V DC
pilot light: No indicator
horsepower rating: 1 hp 277 V AC;0.33 hp 120 V AC
breaking capacity: 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508
maximum switching voltage: 300 V AC;30 V DC
contact material: Silver alloy (AgNi)
operating time: 20 ms - pick-up;20 ms - drop-out
shape of pins: Spade
for use with: 8501NR82
ambient temperature range - operational: -40…131 °F (-40…55 °C)
product certifications: UL Listed;UL Recognized;CSA;CE
Height: 2.25 in (57.15 mm)
Width: 1.37 in (34.80 mm)
Depth: 1.4 in (35.56 mm)
Category: 21144-8501 KU
Discount Schedule: CP2
GTIN: 785901179689
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.50 in (3.81 cm)
Package 1 Width: 1.50 in (3.81 cm)
Package 1 Length: 2.80 in (7.112 cm)
Package 1 Weight: 3.04 oz (86.183 g)
