3RT25161AM20 | CONTACTOR S00 9A 208VAC 2NO/2NC SCRW | Siemens Electrical

2NO+2NC contactor, AC3 4KW AC 208 v 50/60 HZ 4-pole, 2NO+2NC, sz s00, screw terminal

Brand: Siemens ElectricalSKU: 3RT25161AM20

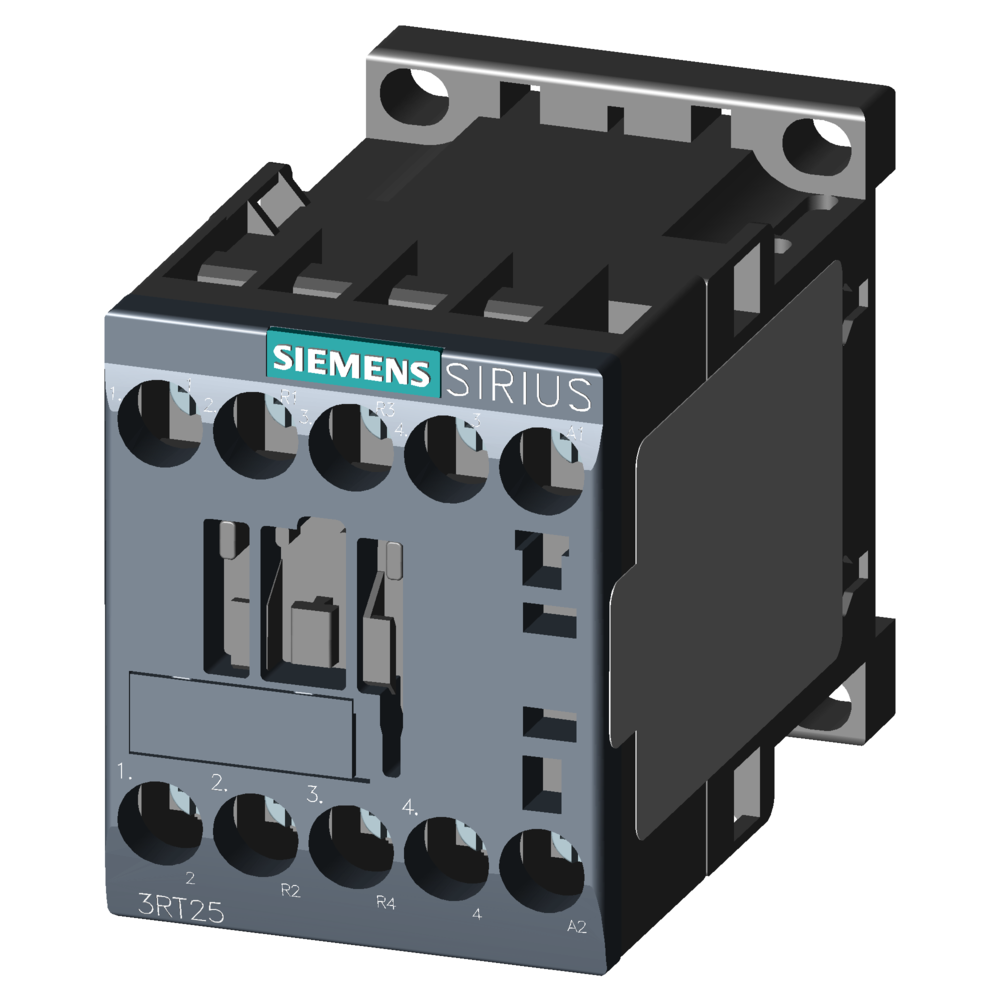

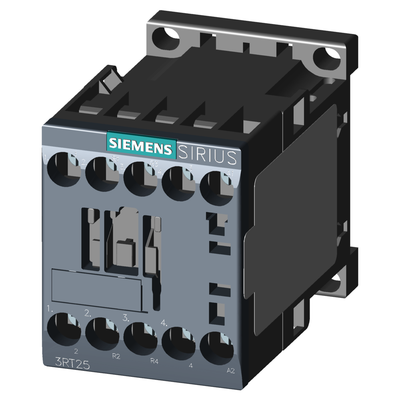

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25161AM20

Item Number	3RT25161AM20
Brand	Siemens Electrical
Height	1.950 IN
Length	2.600 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.88500 LB
Width	2.400 IN
