3RT20363XB440LA2 | CONTACTOR S2 50A 24VDC VAR SPRG 2NO/2NC | Siemens Electrical

RAIL-CONTACTOR, AC-3, 22KW/400V, 2NO+2NC, 24VDC, 0.7...1.25*US, WITH VARISTOR, 3-POLE, SIZE S2, SPRING-TYPE TERMINAL

Brand: Siemens ElectricalSKU: 3RT20363XB440LA2

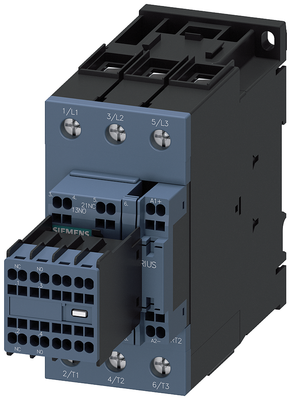

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20363XB440LA2

Item Number	3RT20363XB440LA2
Brand	Siemens Electrical
Height	7.44100 IN
Length	5.19700 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power at AC-4; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	2.590 LB
Width	3.07100 IN
