Documents: 3RT20361AK60
3RT20361AK60 | CONTACTOR S2 50A 120VAC SCREW 1NO/1NC | Siemens Electrical
Contactor,AC3 22KW/400V, 1NO+1NC,110VAC 50HZ/120v 60HZ, 3-pole, size s2, screw terminal

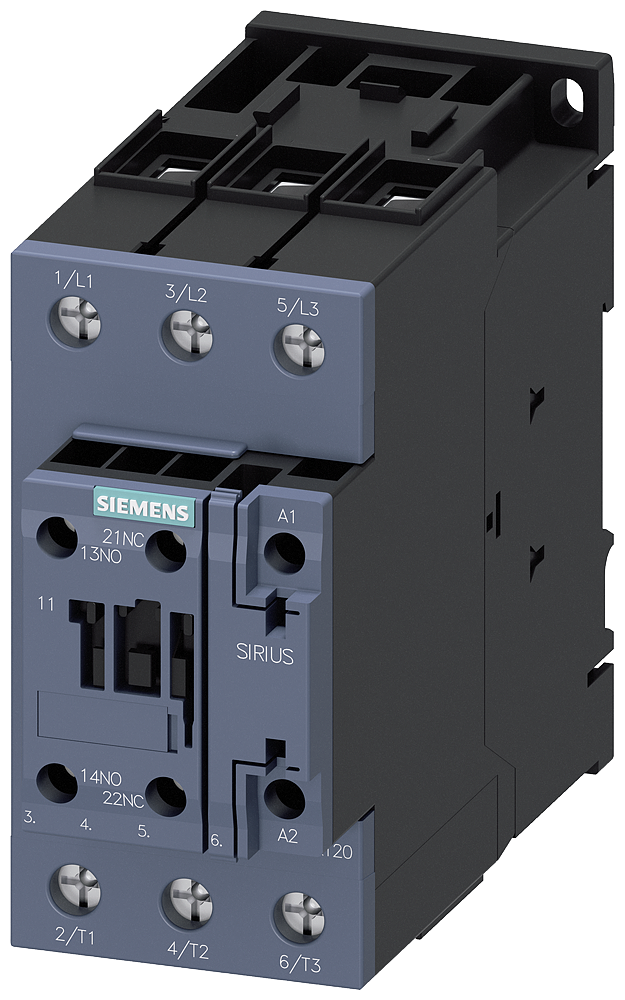

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20361AK60
Overview Details for 3RT20361AK60
Specifications
Item Number | 3RT20361AK60 |
Brand | Siemens Electrical |
Height | 5.650 IN |
Length | 4.5 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated control supply voltage Us at AC 60HZ | 120 V |
Rated operation current Ie at AC-1; 400 V | 70 A |
Rated operation current Ie at AC-3; 400 V | 51 A |
Rated operation current Ie at AC-4; 400 V | 41 A |
Rated operation power at AC-3; 400 V | 22 kW |
Rated operation power NEMA | 29.419949999 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 2.18300 LB |
Width | 2.5 IN |
