3RT20353AL16 | CONTACTOR S2 40A 230VAC LAT AUX 2NO/2NC | Siemens Electrical

CONTACTOR,AC3:18.5KW/400V, 2NO+2NC, 230V AC 60HZ, 3-POLE, SIZE S2, SPRING-TYPE TERMINAL LATERAL AUXILIARY CONTACT BLOCK

Brand: Siemens ElectricalSKU: 3RT20353AL16

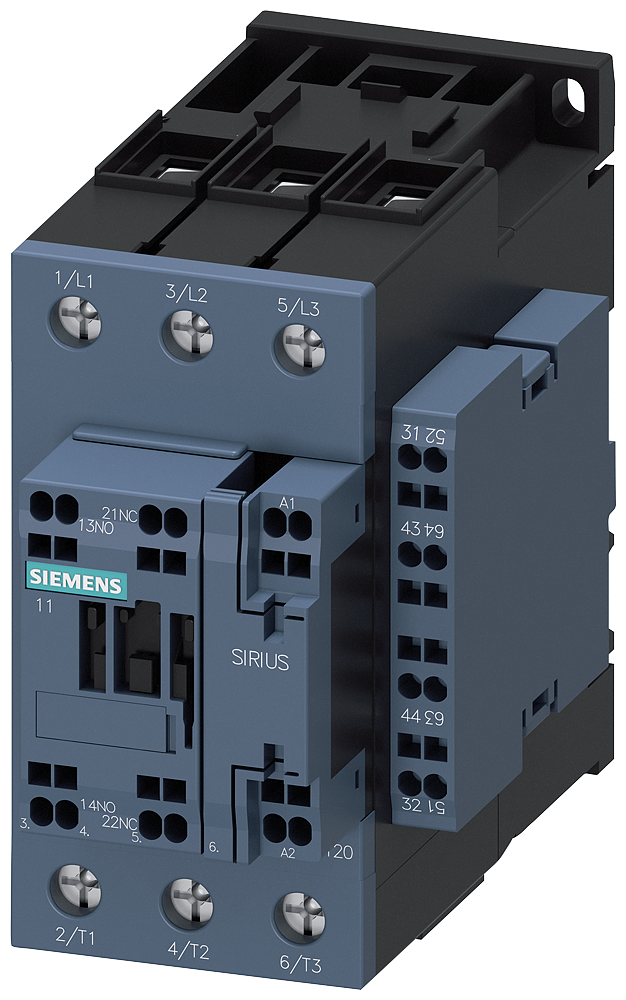

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20353AL16

Item Number	3RT20353AL16
Brand	Siemens Electrical
Height	3.46500 IN
Length	5.670 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 60HZ	230 V
Rated operation current Ie at AC-1; 400 V	60 A
Rated operation current Ie at AC-3; 400 V	41 A
Rated operation current Ie at AC-4; 400 V	35 A
Rated operation power at AC-3; 400 V	18.5 kW
Rated operation power NEMA	22.064962499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.28400 LB
Width	4.84300 IN
