Documents: 3RT20353AF06
3RT20353AF06 | CONTACTOR S2 40A 110VAC LAT AUX 2NO/2NC | Siemens Electrical
CONTACTOR,AC3:18.5KW/400V, 2NO+2NC, 110V AC 50HZ, 3-POLE, SIZE S2, SPRING-TYPE TERMINAL LATERAL AUXILIARY CONTACT BLOCK

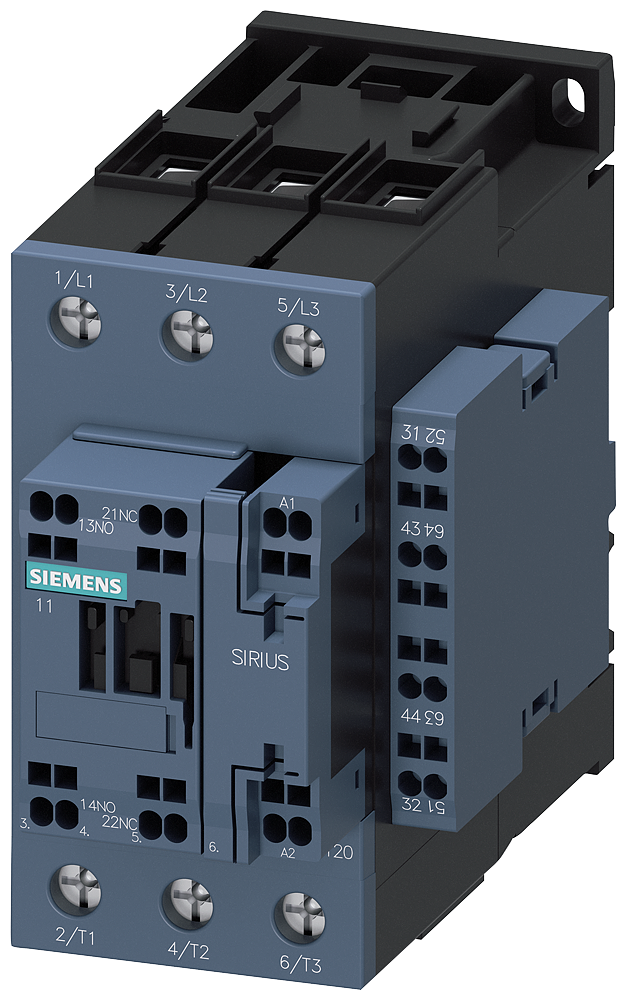

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20353AF06
Overview Details for 3RT20353AF06
Specifications
Item Number | 3RT20353AF06 |
Brand | Siemens Electrical |
Height | 5.59100 IN |
Length | 4.82300 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated operation current Ie at AC-1; 400 V | 60 A |
Rated operation current Ie at AC-3; 400 V | 41 A |
Rated operation current Ie at AC-4; 400 V | 35 A |
Rated operation power at AC-3; 400 V | 18.5 kW |
Rated operation power NEMA | 22.064962499 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 2.240 LB |
Width | 3.22900 IN |
