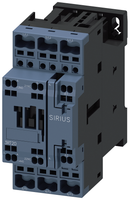

3RT20242AK60 | CONTACTOR S0 12A 120VAC 1NO/1NC SPRG | Siemens Electrical

Contactor, AC-3, 5.5KW/400V, 1NO+1NC, AC110v 50HZ, 120v 60HZ 3-pole, sz s0 spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20242AK60

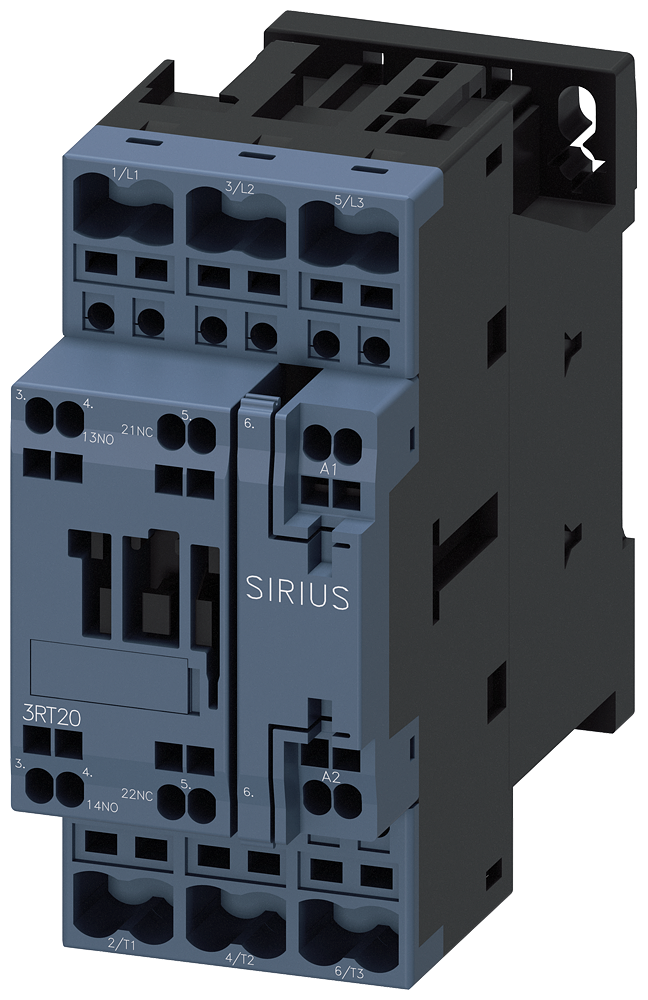

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20242AK60

Item Number	3RT20242AK60
Brand	Siemens Electrical
Height	2.100 IN
Length	5 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	12.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.970 LB
Width	5.3 IN
