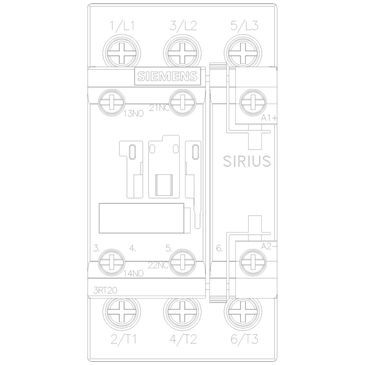

3RT20231NP30 | CONTACTOR S0 9A 200-280VUC 1NO/1NC SCRW | Siemens Electrical

Contactor, AC-3, 4KW/400V, 1NO+1NC, AC(50-60HZ)/DC actuat. AC/DC 200...280V, 3-pole, sz s0 screw terminal

Brand: Siemens ElectricalSKU: 3RT20231NP30

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20231NP30

Item Number	3RT20231NP30
Brand	Siemens Electrical
Height	4.54800 IN
Length	3.62300 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	1.210 LB
Width	2.12600 IN
