Documents: 3RT20161JB421AA0

Datasheet

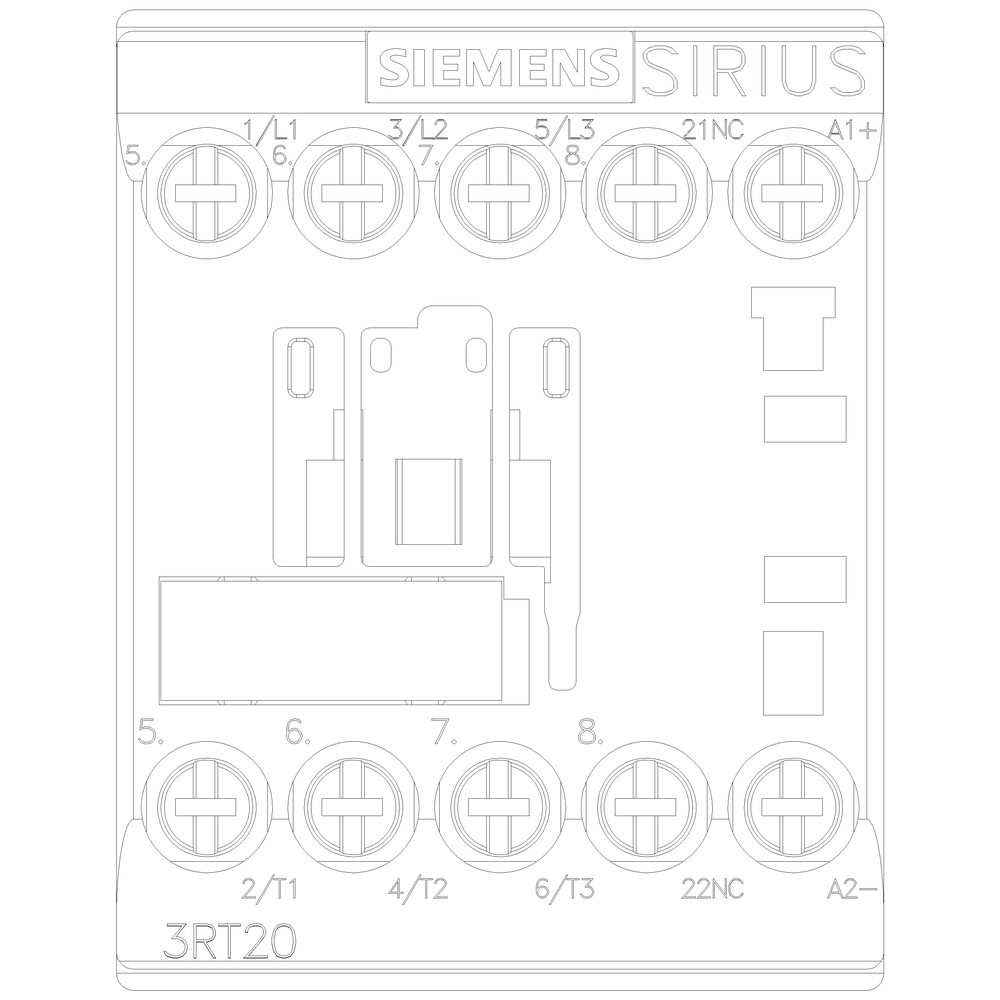

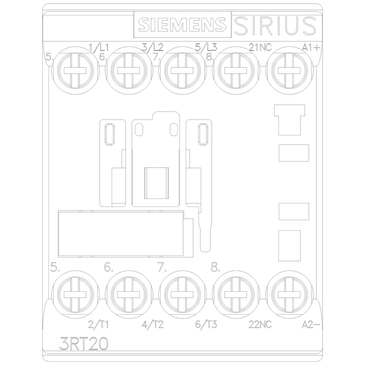

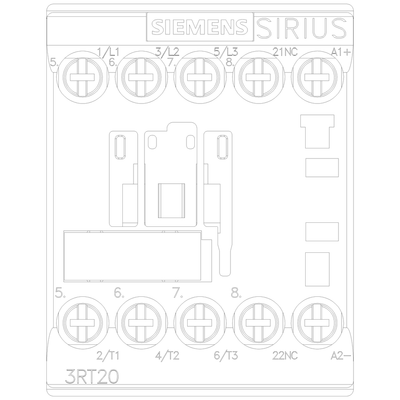

3RT20161JB421AA0 | COUPLING CONT..AC3:4KW 1NC DC24V.M.DIODE | Siemens Electrical

Power contactor. AC-3 9 A. 4 kW / 400 V 1 NC. 24 V DC 0.7-1.25* US. with diode Size S00. screw terminal Suitable for PLC outputs Upright mounting position

Brand: Siemens ElectricalSKU: 3RT20161JB421AA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20161JB421AA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20161JB421AA0

Specifications

Item Number	3RT20161JB421AA0
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.65300 LB
