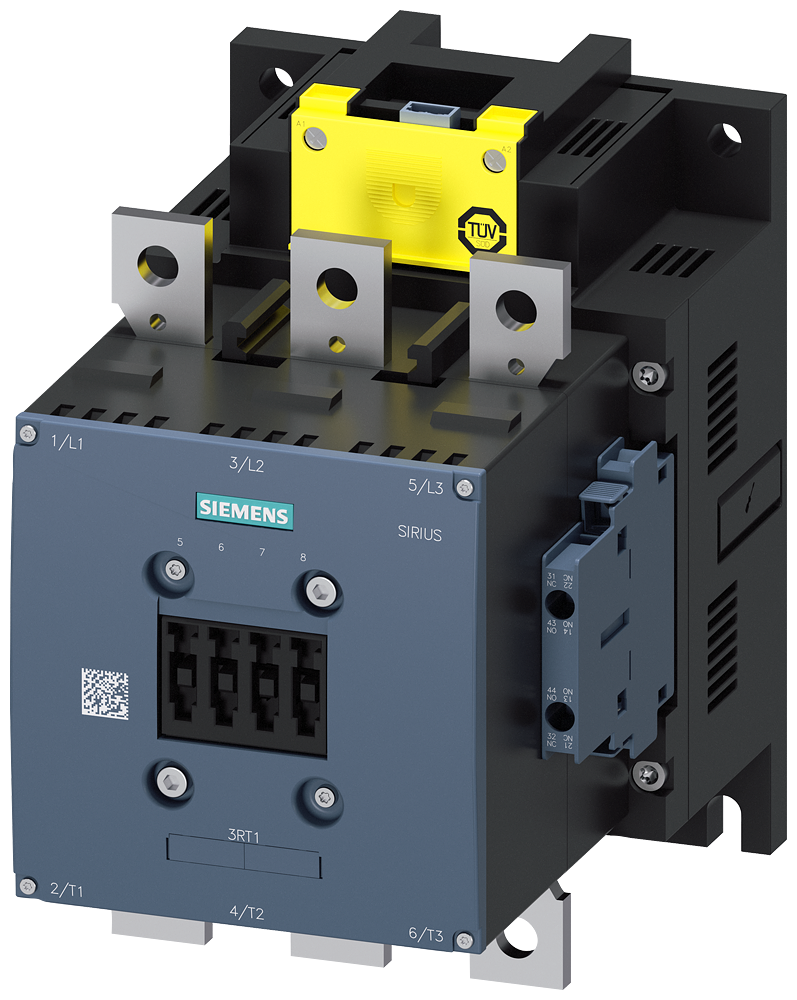

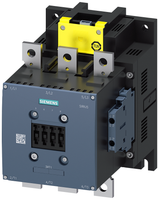

3RT14666SF36 | Contact. AC1: 400A 2NO+2NC F-PLC-IN | Siemens Electrical

Contactor. AC-1. 400 A/690 V/40 Â°C. S10. 3-pole. 96-127 V AC/DC. F-PLC-IN with varistor. 2 NO+2 NC. Connection rail/ screw terminal

Brand: Siemens ElectricalSKU: 3RT14666SF36

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT14666SF36

Item Number	3RT14666SF36
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	400 A
Rated operation current Ie at AC-3; 400 V	138 A
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.77100 LB
