Documents: 3RT1456-6NF36

Datasheet

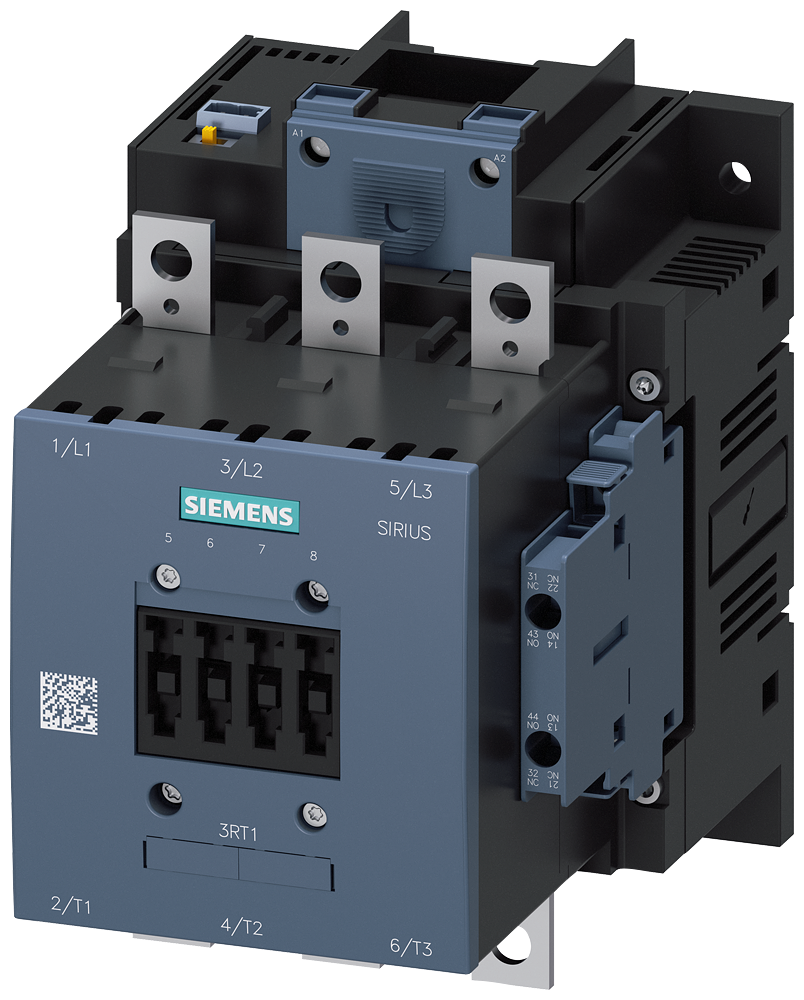

3RT1456-6NF36 | CONTACTOR RES S6 275A 96-127VUC 3P BAR | Siemens Electrical

Contactor,IEC,Sirius,3 Pole Resistive,3 Pole,Non-Reversing 96 - 127 AC/DC Coil Frame Size S6,N/AA Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5

Brand: Siemens ElectricalSKU: 3RT1456-6NF36

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1456-6NF36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1456-6NF36

Specifications

Item Number	3RT1456-6NF36
Brand	Siemens Electrical
Height	7.130 IN
Length	5.080 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	275 A
Rated operation current Ie at AC-3; 400 V	97 A
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.31900 LB
Width	7.490 IN
