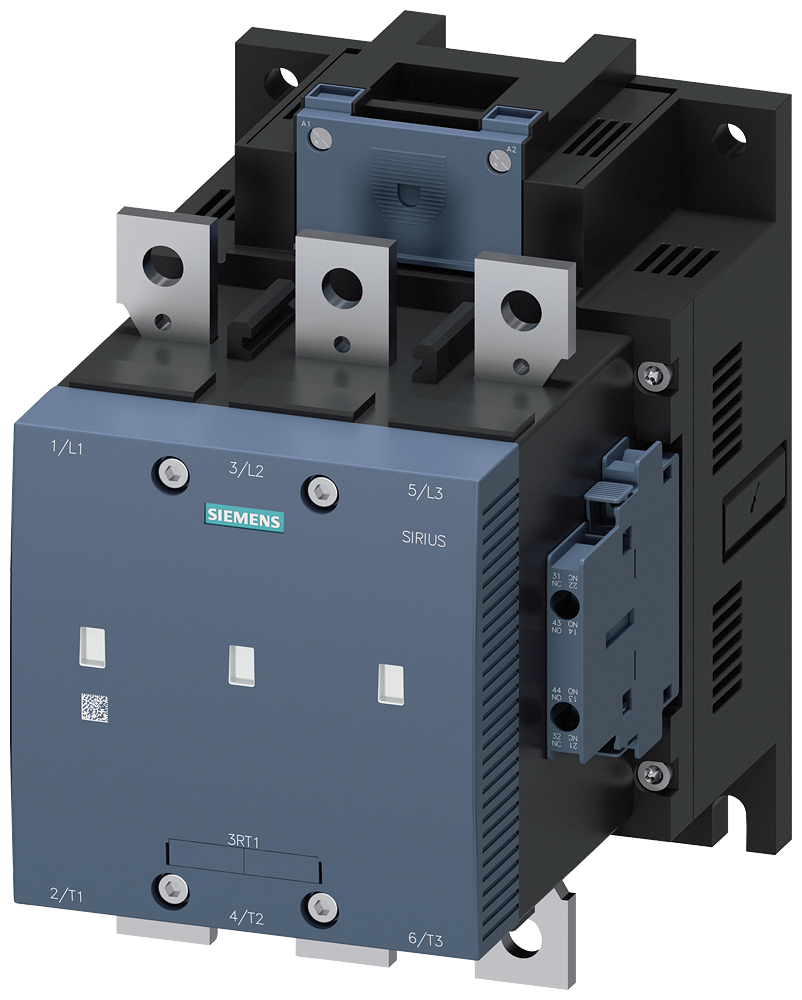

3RT1266-6AR36 | CONTACTOR VAC S10 300A 440-480V 3P BAR | Siemens Electrical

Drive conventional rail connections 3-pole, size s10 auxiliary contacts 2NO+2NC AC/DC operation 440-480v uc VAC. contactor, 160KW/400v/AC-3

Brand: Siemens ElectricalSKU: 3RT1266-6AR36

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT1266-6AR36

Item Number	3RT1266-6AR36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	440 V
Rated control supply voltage Us at AC 60HZ	440 V
Rated control supply voltage Us at DC	440 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	300 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	183.8746875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	16.09100 LB
Width	10.440 IN
