Documents: 3RT1266-6AP36

Datasheet

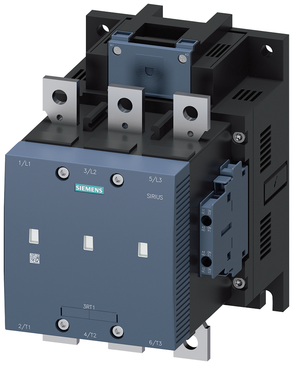

3RT1266-6AP36 | CONTACTOR VAC S10 300A 220-240V 3P BAR | Siemens Electrical

Contactor,IEC,Sirius,Vacuum 3 Pole,Non-Reversing 220 - 240 AC/DC Coil Frame Size S10,300A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 3

Brand: Siemens ElectricalSKU: 3RT1266-6AP36

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1266-6AP36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1266-6AP36

Specifications

Item Number	3RT1266-6AP36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated control supply voltage Us at DC	220 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	300 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	183.8746875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	16.100 LB
Width	10.440 IN
