Documents: 3RT10666XB460LA2

Datasheet

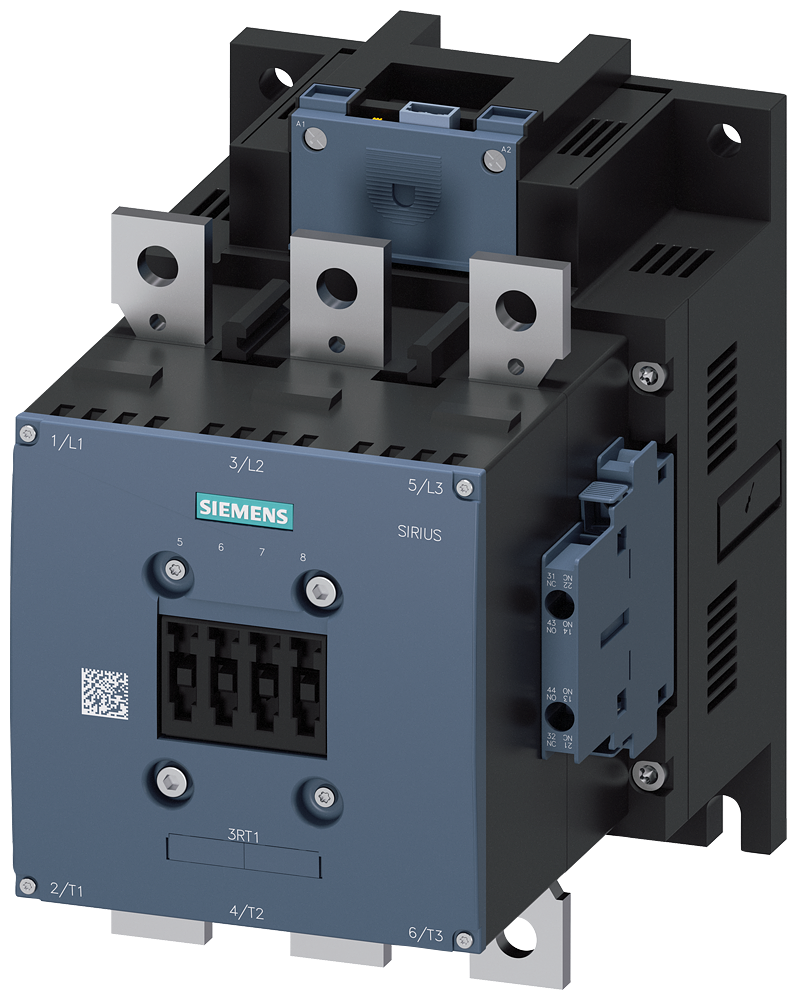

3RT10666XB460LA2 | Contactor AC3:160 kW/400V 2NO+2NC DC24V | Siemens Electrical

Power contactor, AC-3e/AC-3 300 A, 160 kW / 400 V, Uc: 24 V DC x (0.7-1.25) PLC input 24-110 V DC 3-pole, auxiliary contacts 2 NO + 2 NC drive: electronic main circuit: busbar control and auxiliary circuit: screw terminal extended rated condition railroad IEC 60077

Brand: Siemens ElectricalSKU: 3RT10666XB460LA2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10666XB460LA2

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10666XB460LA2

Specifications

Item Number	3RT10666XB460LA2
Brand	Siemens Electrical
freeship	upsground
Height	9.210 IN
Length	10.710 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	300 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	183.8746875 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	14.57500 LB
Width	7.720 IN
