Documents: 3RT10662AB36

Datasheet

3RT10662AB36 | CONTACTOR. 160 KW / 400 V /AC-3 | Siemens Electrical

Power contactor. AC-3 300 A. 160 kW / 400 V AC (50-60 Hz) / DC operation 23-26 V UC Auxiliary contacts 2 NO + 2 NC 3-pole. Size S10 Busbar connections Drive: conventional Spring-type terminal

Brand: Siemens ElectricalSKU: 3RT10662AB36

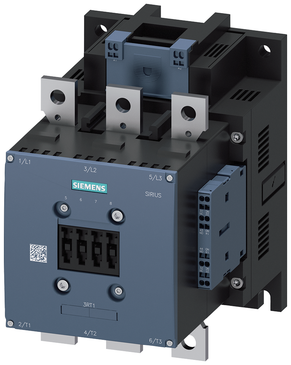

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10662AB36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10662AB36

Specifications

Item Number	3RT10662AB36
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	300 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	183.8746875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.61700 LB
