Documents: 3RT10656SP36

Datasheet

3RT10656SP36 | Contact. 132 kW/400V 2NO+2NC F-PLC-IN | Siemens Electrical

Contactor AC3: 132kW / 400 V 3-pole Size S10 Coil AC 50/60Hz and DC 200...277 V x (0.8...1.1) auxiliary contacts: 2 NO + 2 NC Main: busbar connections coil and auxilliary: screw

Brand: Siemens ElectricalSKU: 3RT10656SP36

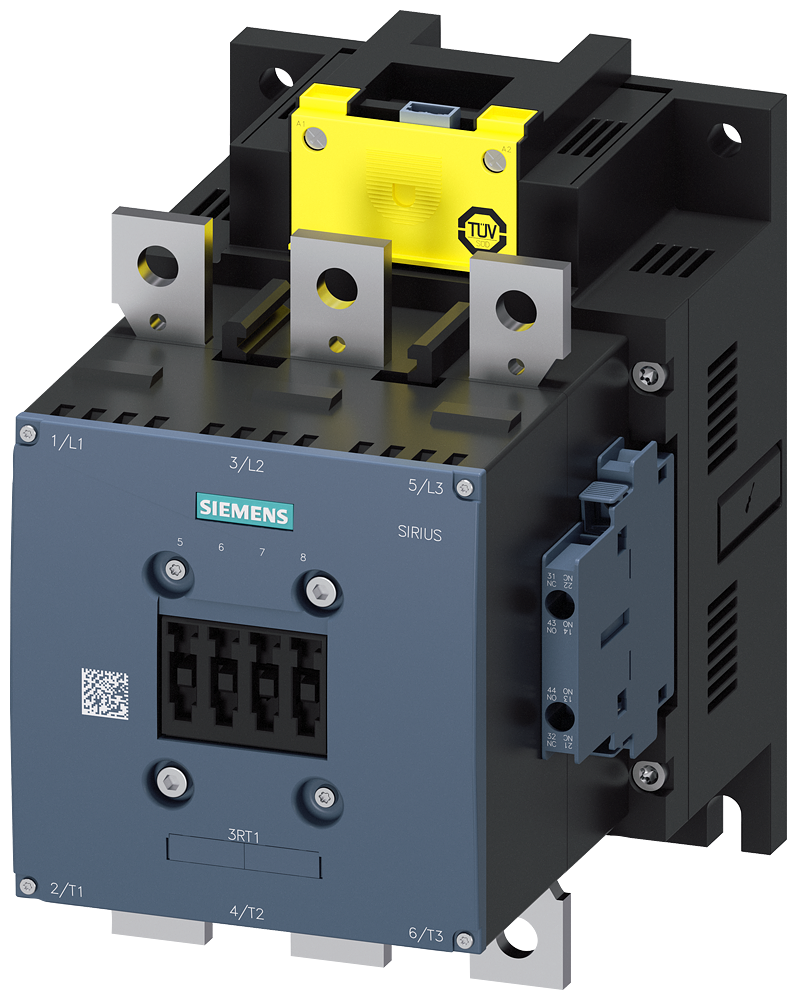

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10656SP36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10656SP36

Specifications

Item Number	3RT10656SP36
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	265 A
Rated operation current Ie at AC-4; 400 V	230 A
Rated operation power at AC-3; 400 V	132 kW
Rated operation power at AC-4; 400 V	132 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.110 LB
