Documents: 3RT1055-2AR36

Datasheet

3RT1055-2AR36 | CONTACTOR. 75 KW / 400 V / AC-3 | Siemens Electrical

CONTACTOR. 75 KW / 400 V / AC-3 AC/DC OPERATION UC 440-480 V AUXILIARY CONTACTS 2NO+2NC 3-POLE. SIZE S6 BAR CONNECTIONS CONVENTIONAL OPERATING MECHAN. CAGE CLAMP CONNECTION

Brand: Siemens ElectricalSKU: 3RT1055-2AR36

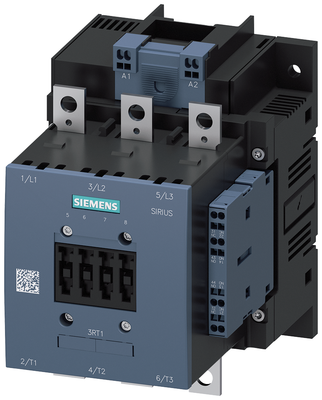

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1055-2AR36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1055-2AR36

Specifications

Item Number	3RT1055-2AR36
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	440 V
Rated control supply voltage Us at AC 60HZ	440 V
Rated control supply voltage Us at DC	440 V
Rated operation current Ie at AC-1; 400 V	185 A
Rated operation current Ie at AC-3; 400 V	150 A
Rated operation current Ie at AC-4; 400 V	132 A
Rated operation power at AC-3; 400 V	75 kW
Rated operation power at AC-4; 400 V	75 kW
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.470 LB
